Components [09/2017 - 05/2019]

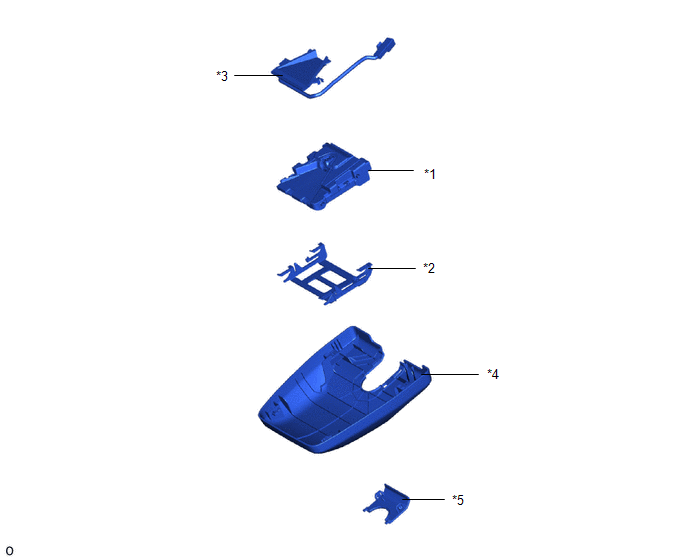

Fig 1: Front Camera Replacement Components
GTY819748Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 FORWARD RECOGNITION CAMERA *2 FORWARD RECOGNITION LATCH
*3 FORWARD RECOGNITION WITH HEATER HOOD SUB-ASSEMBLY *4 NO. 1 FORWARD RECOGNITION COVER
*5 NO. 2 FORWARD RECOGNITION COVER - -
