System Diagram [10/2019 - ]

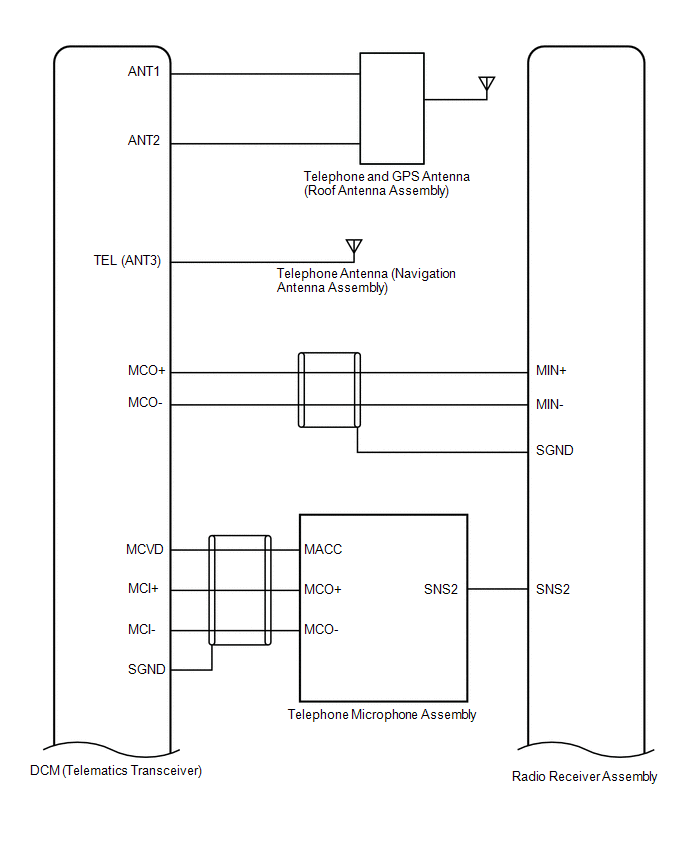

Fig 1: Lexus Enform System Diagram (1 Of 5)
GTY960220Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Lexus Enform System Diagram (2 Of 5)
GTY800956Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Lexus Enform System Diagram (3 Of 5)
GTY832506Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 4: Lexus Enform System Diagram (4 Of 5)
GTY805278Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 5: Lexus Enform System Diagram (5 Of 5)
GTY826008Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
