Parts Location [10/2014 - ]: Illustration

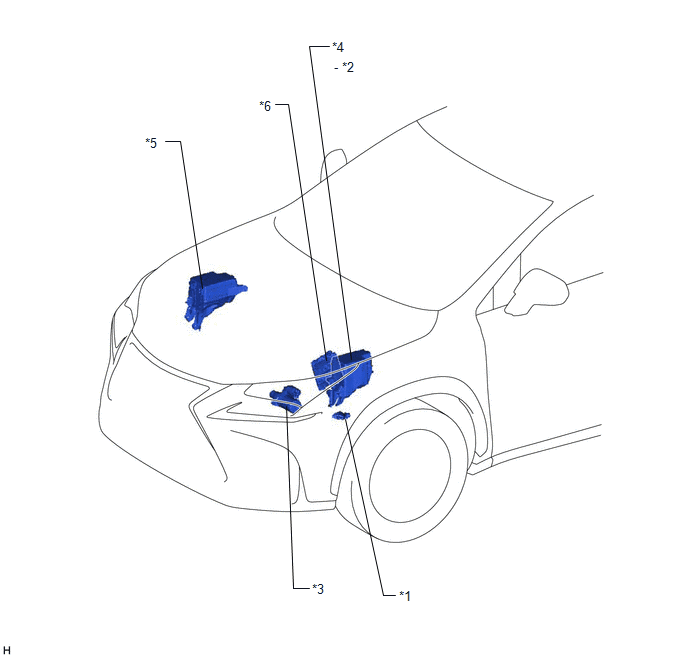

Fig 1: Smart Access System With Push-Button Start (For Start Function) Components Location (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	PARK/NEUTRAL POSITION SWITCH ASSEMBLY	*2	ST RELAY
*3	STARTER ASSEMBLY	*4	NO. 1 ENGINE ROOM RELAY BLOCK - IG2-MAIN RELAY - ECU-B NO. 1 FUSE - AM2 FUSE - ST NO. 1 FUSE
*5	NO. 2 ENGINE ROOM RELAY BLOCK - IG1 RELAY	*6	ECM

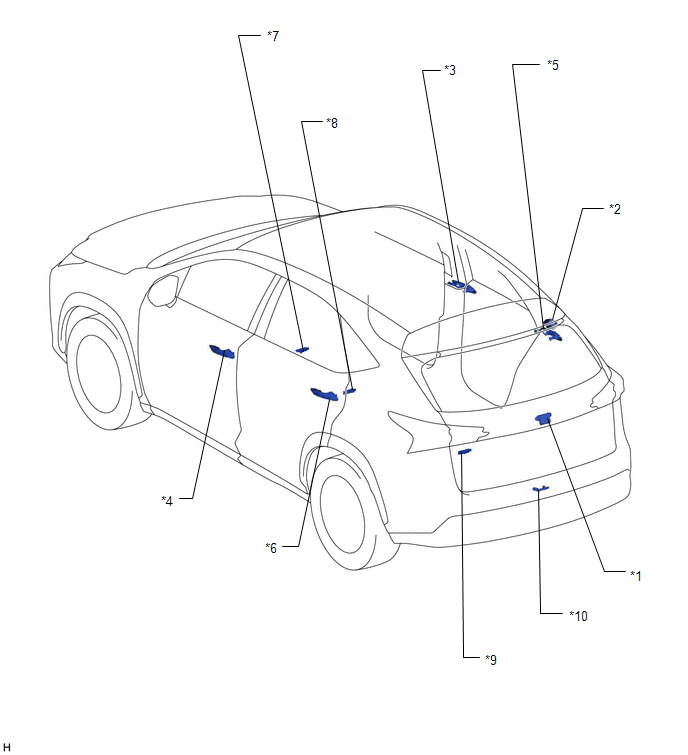

Fig 1: Smart Access System With Push-Button Start (For Start Function) Components Location (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	BACK DOOR SWITCH ASSEMBLY	*2	DOOR CONTROL RECEIVER
*3	FRONT DOOR OUTSIDE HANDLE ASSEMBLY RH	*4	FRONT DOOR OUTSIDE HANDLE ASSEMBLY LH
*5	REAR DOOR OUTSIDE HANDLE ASSEMBLY RH	*6	REAR DOOR OUTSIDE HANDLE ASSEMBLY LH
*7	NO. 1 INDOOR ELECTRICAL KEY ANTENNA ASSEMBLY (FRONT FLOOR)	*8	NO. 2 INDOOR ELECTRICAL KEY ANTENNA ASSEMBLY (REAR FLOOR)
*9	NO. 3 INDOOR ELECTRICAL KEY ANTENNA ASSEMBLY (INSIDE LUGGAGE)	*10	ELECTRICAL KEY ANTENNA (OUTSIDE BACK DOOR)

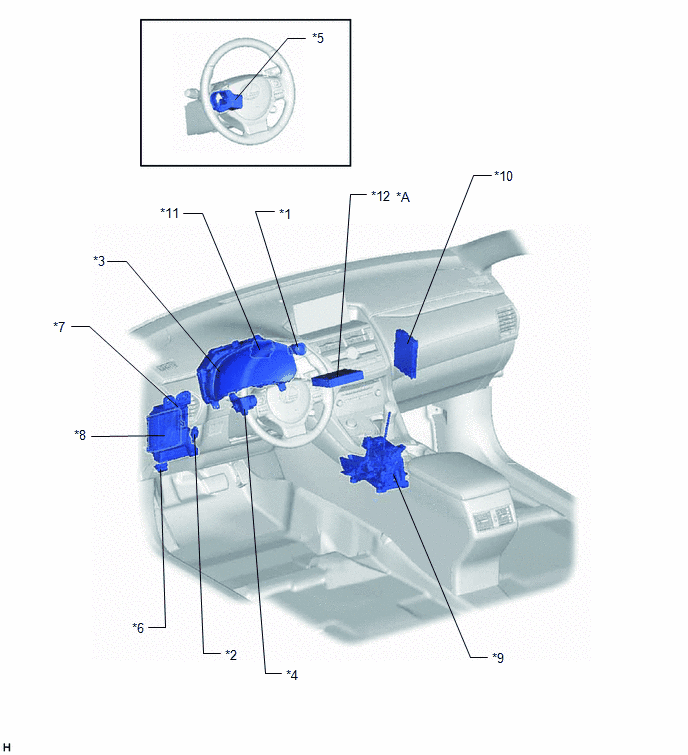

Fig 1: Smart Access System With Push-Button Start (For Start Function) Components Location (3 Of 3)

*A	for Lexus Enform Remote Compatible Type	-	-
*1	ENGINE SWITCH	*2	STOP LIGHT SWITCH ASSEMBLY
*3	COMBINATION METER ASSEMBLY	*4	STEERING LOCK ECU (STEERING LOCK ACTUATOR ASSEMBLY) (for Power Tilt and Power Telescopic Steering Column)
*5	STEERING LOCK ECU (STEERING LOCK ACTUATOR ASSEMBLY) (for Manual Tilt and Manual Telescopic Steering Column)	*6	DLC3
*7	INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - ACC RELAY - IG1 NO. 1 RELAY - IG1 NO. 2 RELAY - IG1 NO. 3 RELAY - ACC FUSE - ECU-IG NO. 1 FUSE - EPS-IG FUSE - BKUP LP FUSE - STOP FUSE	*8	MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)
*9	TRANSMISSION FLOOR SHIFT ASSEMBLY (SHIFT LOCK CONTROL ECU)	*10	CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)
*11	ID CODE BOX (IMMOBILISER CODE ECU)	*12	DCM (TELEMATICS TRANSCEIVER)
