Drive Start Control System [09/2017 - 05/2018]: Description

  1. The drive start control is controlled by the ECM.

    If the ECM determines that the shift lever and accelerator pedal are operated abnormally, driving force is restricted and, when necessary, a warning is displayed on the combination meter assembly.

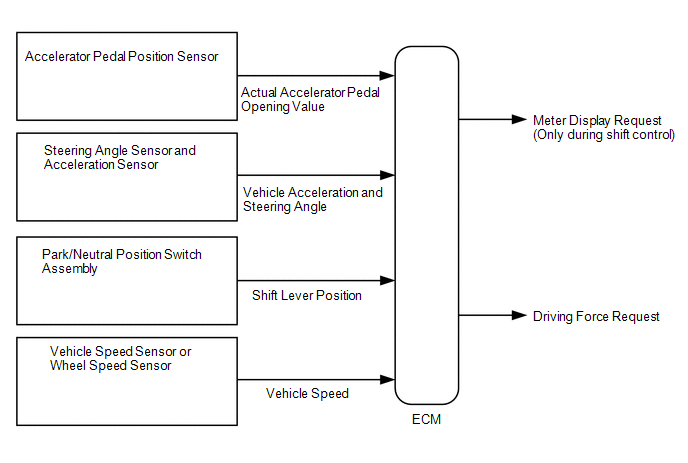

    Fig 1: Drive Start Control System Flow Chart
    GTY801760Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
