EVAP System [10/2014 - 05/2018]: Procedure

1. Turn the engine switch off and wait for 10 seconds.
2. Turn the engine switch on (IG).
3. Turn the engine switch off and wait for 10 seconds.
4. Connect the Techstream to the DLC3.
5. Turn the engine switch on (IG) and turn the Techstream on.
6. Enter the following menus: Powertrain / Engine / Trouble Codes.
7. Confirm DTCs and freeze frame data. If any EVAP system DTCs are stored, the malfunctioning area can be determined using the table below.

   Powertrain > Engine > Trouble Codes

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   NOTE:

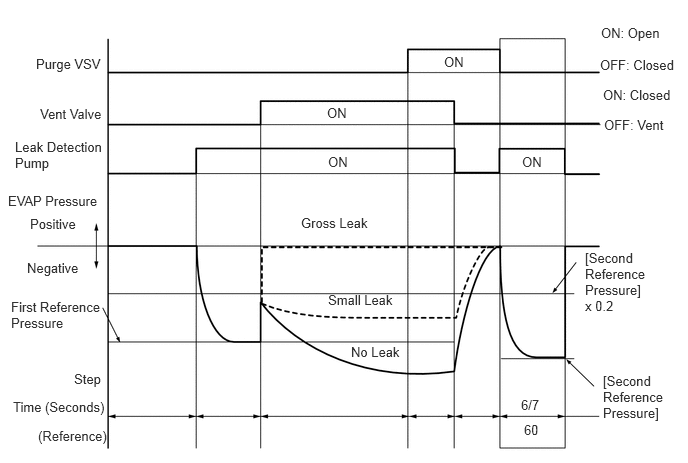

   If the reference pressure difference between the first and second checks is greater than the specification, all the DTCs relating to the reference pressure (P043E-00, P043F-00, P2400-7E, P2400-7F and P2418-7E) are stored.

   Result

   Proceed to
   NEXT

Result:

NEXT

See step  2

1. Connect the Techstream to the DLC3.
2. Turn the engine switch on (IG).
3. Turn the Techstream on.
4. Clear the DTCs.

   Powertrain > Engine > Clear DTCs

5. Turn the engine switch off and wait for at least 30 seconds.
6. Turn the engine switch on (IG) and turn the GTS on.

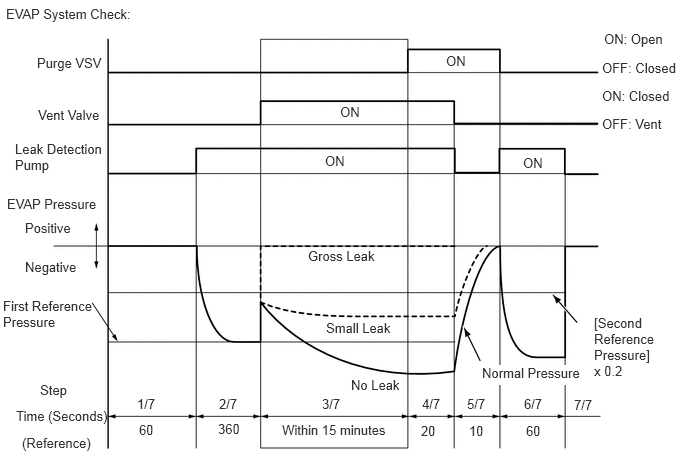

7. Enter the following menus: Powertrain / Engine / Utility / Evaporative System Check / Automatic Mode.

   Powertrain > Engine > Utility

   Tester Display
   Evaporative System Check

8. After the Evaporative System Check is completed, check for pending DTCs by entering the following menus: Powertrain / Engine / Trouble Codes.

   HINT:

   If no pending DTCs are displayed, perform the Confirmation Driving Pattern. After this confirmation, check for pending DTCs. If no DTCs are displayed, the EVAP system is normal.

   Powertrain > Engine > Trouble Codes

   Result

   Proceed to
   NEXT

Result:

NEXT

See step  3

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Connect the Techstream to the DLC3.
2. Turn the engine switch on (IG).
3. Turn the Techstream on.
4. Clear the DTCs.

   Powertrain > Engine > Clear DTCs

5. Turn the engine switch off and wait for at least 30 seconds.
6. Turn the engine switch on (IG) and turn the GTS on.
7. Enter the following menus: Powertrain / Engine / Utility / Evaporative System Check / Manual Mode.

   Powertrain > Engine > Utility

   Tester Display
   Evaporative System Check

   Result

   Proceed to
   NEXT

Result:

NEXT

See step  4

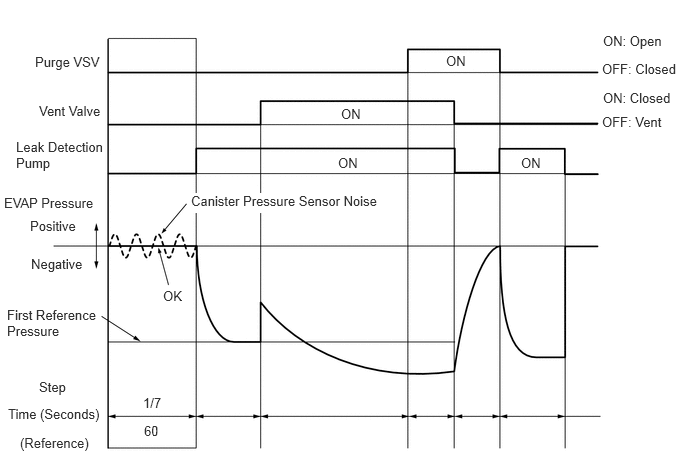

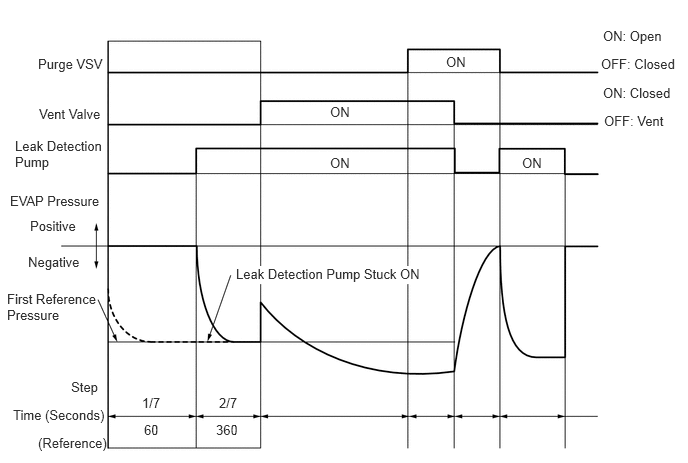

1. Check the EVAP pressure in step 1/7.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Result

   DTC*1	Result	Suspected Trouble Area	Proceed to
   -	Virtually no variation in EVAP pressure	Not yet determined	A
   P0450-2F	EVAP pressure fluctuates by +/-0.3 kPa(gauge) [0.044 psi(gauge)] or higher	Canister pressure sensor signal noise	B
   (P0450-11 or P0450-15)*2	EVAP pressure is below 42.11 kPa(abs) [6.11 psi(abs)], or higher than 123.761 kPa(abs) [17.95 psi(abs)] EVAP pressure deviates +/-10 kPa(gauge) [1.45 psi(gauge)] from actual atmosphere pressure *3	Canister pressure sensor or its circuit has malfunction	C

   • *1: These DTCs are already present in the ECM when the vehicle arrives and are confirmed in the "Confirm DTC" procedure above.
   • *2: If the canister pressure sensor circuit has an open or short, DTC P0450-11 or P0450-15 is stored 0.5 seconds after the engine switch is turned on (IG).

   HINT:

   *3: Canister pressure sensor standard output range is 70 to 110 kPa(abs) [10.15 to 15.95 psi(abs)]. This varies by weather.

Result:

B

See step  41

Result:

C

See step  43

Result:

A

See step  5

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

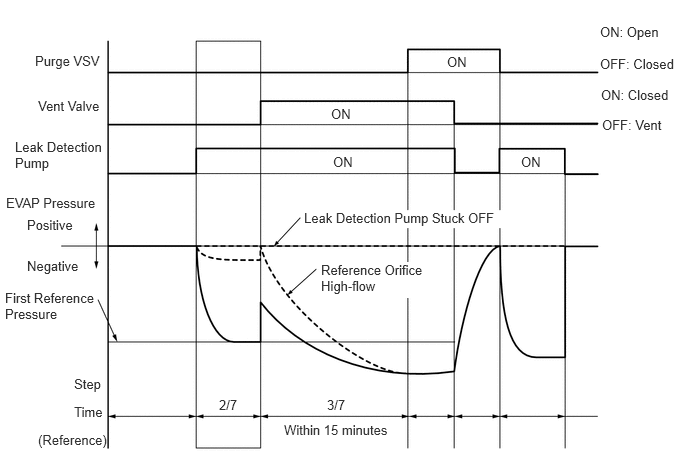

1. Check the EVAP pressure in steps 1/7 and 2/7.

   Result

   DTC*	Result	Suspected Trouble Area	Proceed to
   -	Virtually no variation in EVAP pressure during step 1/7. Then decreases to reference pressure	Not yet determined	A
   P2400-7E	Small difference between EVAP pressures during steps 1/7 and 2/7	Leak detection pump stuck ON	B

   1. *: These DTCs are already present in the ECM when the vehicle arrives and are confirmed in the "Confirm DTC" procedure above.

   HINT:

   The first reference pressure is the value determined in step 2/7.

Result:

B

See step  33

Result:

A

See step  6

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

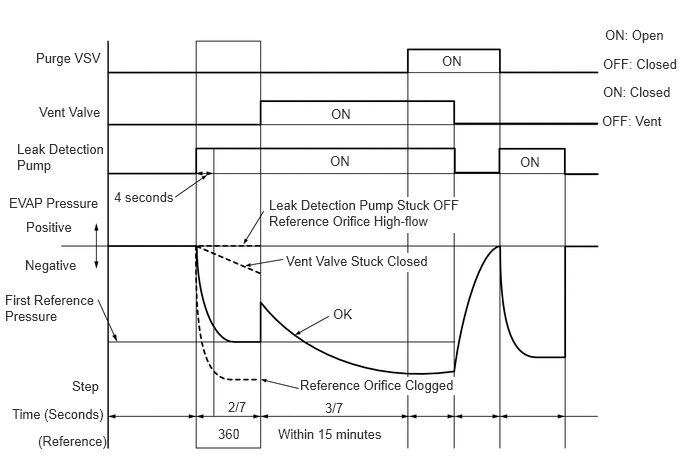

HINT:

Make a note of the pressures checked in inspection items (A) and (B) below.

1. Check the EVAP pressure 4 seconds after the leak detection pump is activated*1 (A).

   *1: The leak detection pump begins to operate as step 1/7 finishes and step 2/7 starts.

2. Check the EVAP pressure again when it has stabilized. This pressure is the reference pressure (B).

   Result

   DTC*2	Result	Suspected Trouble Area	Proceed to
   -	EVAP pressure in inspection item (B) is between -4.85 kPa(gauge) and -1.068 kPa(gauge) [-0.703 psi(gauge) and -0.155 psi(gauge)]	Not yet determined	A
   P043F-00 and P2400-7F	EVAP pressure in inspection item (B) is -1.068 kPa(gauge) [-0.155 psi(gauge)] or higher	Reference orifice high-flow Leak detection pump stuck OFF	B
   P043E-00	EVAP pressure in inspection item (B) is below -4.85 kPa(gauge) [-0.703 psi(gauge)]	Reference orifice clogged	C
   P2418-7E	EVAP pressure in inspection item (A) is higher than -0.25 kPa(gauge) [-0.036 psi(gauge)]	Vent valve stuck closed Leak detection pump performance deteriorates Leak detection pump circuit malfunctioning (large resistance exists in the circuit)	D

   *2: These DTCs are already present in the ECM when the vehicle arrives and are confirmed in the "Confirm DTC" procedure above.

Result:

B

See step  29

Result:

C

See step  41

Result:

D

See step  35

Result:

A

See step  7

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

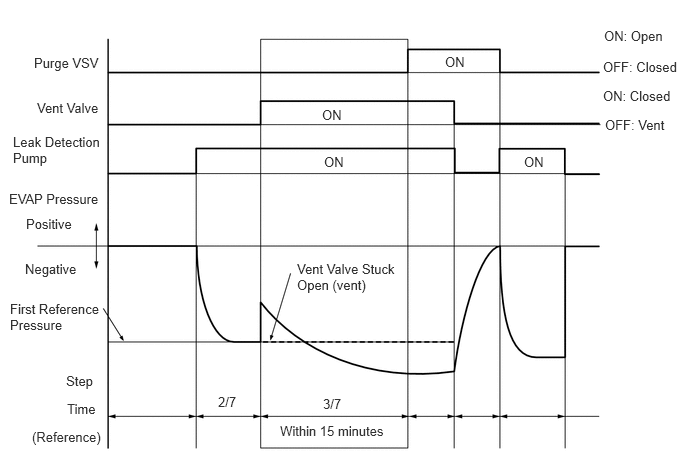

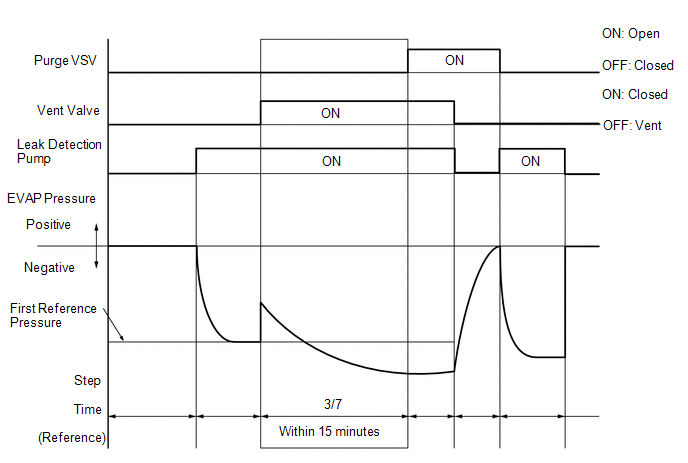

1. Check the EVAP pressure in step 3/7.

   Result

   DTC*	Result	Suspected Trouble Area	Proceed to
   -	EVAP pressure increases by 0.3 kPa(gauge) [0.044 psi(gauge)] or higher within 10 seconds of proceeding from step 2/7 to step 3/7	Not yet determined	A
   P2418-7F	No variation in EVAP pressure even after proceeding from step 2/7 to step 3/7	Vent valve stuck open (vent) Canister (charcoal filter inside canister) clogged	B

   *: These DTCs are already present in the ECM when the vehicle arrives and are confirmed in the "Confirm DTC" procedure above.

Result:

B

See step  22

Result:

A

See step  8

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Wait until the EVAP pressure change is less than 0.12 kPa(gauge) [0.017 psi(gauge)] for 40 seconds.
2. Measure the EVAP pressure and record it.

   HINT:

   A few minutes are required for the EVAP pressure to become saturated. When there is little fuel in the fuel tank, it takes up to 15 minutes.

   Result

   Proceed to
   NEXT

Result:

NEXT

See step  9

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Check the EVAP pressure in step 4/7.

   Result

   DTC*	Result	Suspected Trouble Area	Proceed to
   -	Variation in EVAP pressure is 2.2 kPa(gauge) or less [0.319 psi(gauge)] for 20 seconds, after proceeding from step 3/7 to step 4/7	Not yet determined	A
   P148D-7E	EVAP pressure increases by higher than 2.2 kPa(gauge) [0.319 psi(gauge)] within 20 seconds of proceeding from step 3/7 to step 4/7	No. 1 check valve Problems in EVAP hose between No. 1 check valve and purge VSV	B

   *: These DTCs are already present in the ECM when the vehicle arrives and are confirmed in the "Confirm DTC" procedure above.

Result:

B

See step  19

Result:

A

See step  10

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

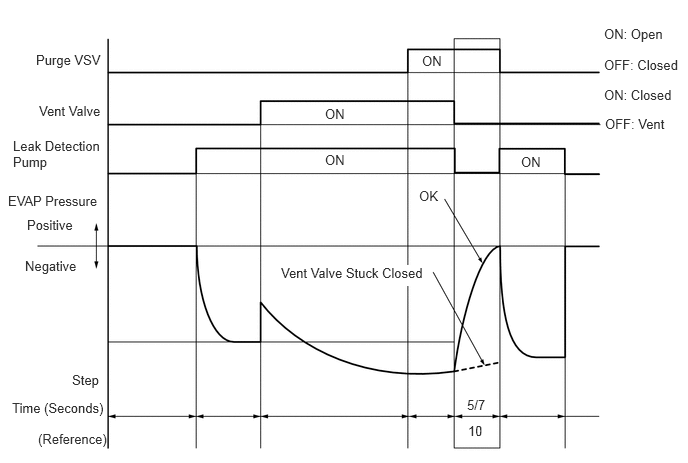

1. Check the EVAP pressure in step 5/7.

   Result

   DTC*	Result	Suspected Trouble Area	Proceed to
   -	EVAP pressure increases by 0.3 kPa(gauge) [0.044 psi(gauge)] or higher within 10 seconds of proceeding from step 4/7 to step 5/7	Not yet determined	A
   P2418-7E	Variation in EVAP pressure is below 0.3 kPa(gauge) [0.044 psi(gauge)] for 10 seconds, after proceeding from step 4/7 to step 5/7	Vent valve stuck closed	B

   *: These DTCs are already present in the ECM when the vehicle arrives and are confirmed in the "Confirm DTC" procedure above.

Result:

B

See step  41

Result:

A

See step  11

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Check the EVAP pressure in step 6/7.
2. Compare the EVAP pressure in step 3/7 and the second reference pressure (step 6/7).

   Result

   DTC*	Result	Suspected Trouble Area	Proceed to
   -	EVAP pressure from step 3/7 lower than second reference pressure (step 6/7)	Not yet determined (no leakage from EVAP system)	A
   P0455-00	EVAP pressure from step 3/7 higher than [second reference pressure (step 6/7) x 0.2]	EVAP gross leak	B
   P0456-00	EVAP pressure from step 3/7 higher than second reference pressure (step 6/7)	EVAP small leak

   *: These DTCs are already present in the ECM when the vehicle arrives and are confirmed in the "Confirm DTC" procedure above.

Result:

B

See step  13

Result:

A

See step  12

1. Repair the malfunctioning areas indicated by the DTCs that had been confirmed when the vehicle was brought in.

   Result

   Proceed to
   NEXT

Result:

NEXT

See step  42

1. Check for leakages in the EVAP purge line between the purge VSV and canister.

   OK

   No leakages in the EVAP purge line between the purge VSV and canister.

   Result

   Proceed to
   OK
   NG

Result:

NG

See step  18

Result:

OK

See step  14

1. Check that the fuel tank cap is correctly installed and confirm that the fuel tank cap meets OEM specifications.
2. Tighten the fuel tank cap firmly (only one click sound could be heard).

   HINT:

   If an EVAP tester is available, check the fuel tank cap using the tester.

   1. Remove the fuel tank cap and install it onto a fuel tank cap adapter.
   2. Connect an EVAP tester pump hose to the adapter, and pressurize the cap to 3.2 to 3.7 kPa(gauge) [0.464 to 0.537 psi(gauge)] using an EVAP tester pump.
   3. Seal the adapter and wait for 2 minutes.
   4. Check the pressure. If the pressure is 2 kPa(gauge) [0.29 psi(gauge)] or higher, the fuel tank cap is normal.

   Result

   Test Result	Suspected Trouble Area	Proceed to
   Fuel tank cap correctly installed	-	A
   Fuel tank cap loose	Fuel tank cap improperly installed Defective fuel tank cap Fuel tank cap does not meet OEM specifications	B
   Defective fuel tank cap	-
   No fuel tank cap	-	C

Result:

B

See step  16

Result:

C

See step  17

Result:

A

See step  15

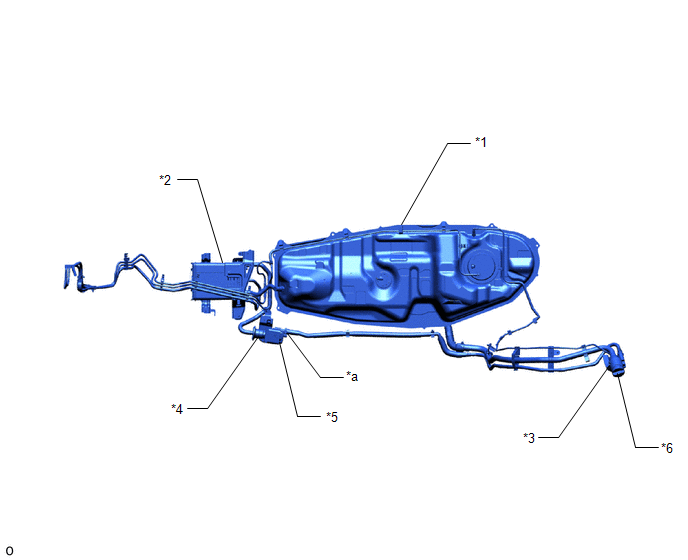

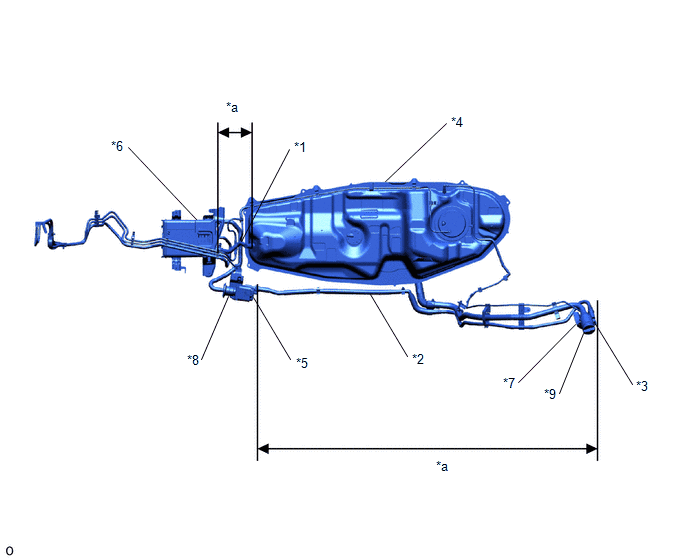

1. Disconnect the vent hose.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	Fuel Tank	*2	Canister
   *3	Fuel Tank Inlet Pipe Sub-assembly (Canister Filter)	*4	Trap Canister
   *5	Canister Pump Module	*6	Fuel Tank Cap Assembly
   *a	Disconnect the vent hose	-	-

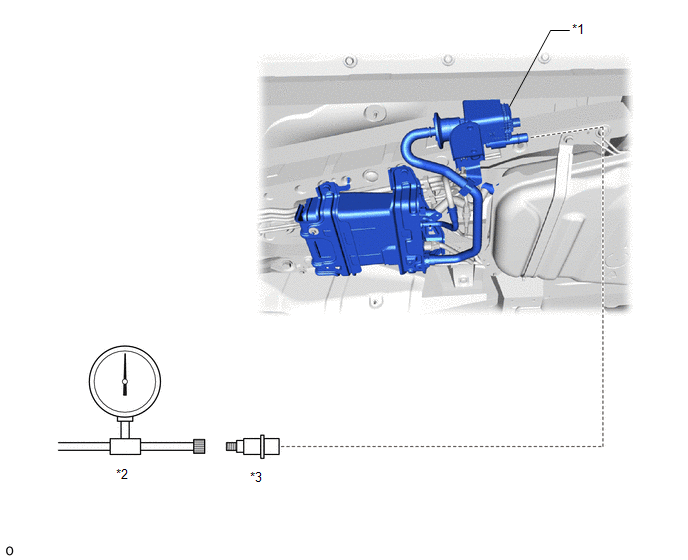

2. Connect the EVAP pressure tester tool to the canister pump module with the adapter.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	Canister Pump Module	*2	EVAP Pressure Tester Tool
   *3	Adapter	-	-

3. Pressurize the EVAP system to 3.2 to 3.7 kPa(gauge) [24 to 27.75 mmHg(gauge)].
4. Apply soapy water to the piping and connecting parts of the EVAP system.
5. Look for areas where bubbles appear. This indicates the leak point.
6. Repair or replace the leak point.

   HINT:

   Disconnect the hose between the canister and fuel tank from the canister. Block the canister side and conduct an inspection. In this way, the fuel tank can be excluded as an area suspected of causing fuel leaks.

   Result

   Proceed to
   NEXT

Result:

NEXT

See step  42

HINT:

• When reinstalling the fuel tank cap, tighten it firmly (only one click sound could be heard).
• When replacing the fuel tank cap, use a fuel tank cap that meets OEM specifications, and install it firmly.

Result

Result:

NEXT

See step  42

HINT:

When installing the fuel tank cap, tighten it firmly (only one click sound could be heard).

Result

Result:

NEXT

See step  42

Result

Result:

NEXT

See step  42

1. Check the No. 1 check valve.

   Refer to PROCEDURE - Step 2

   Result

   Proceed to
   OK
   NG

Result:

NG

See step  21

Result:

OK

See step  20

Result

Result:

NEXT

See step  42

1. Replace the No. 1 check valve.

   Refer to REMOVAL [10/2014 - ]

   Result

   Proceed to
   NEXT

Result:

NEXT

See step  42

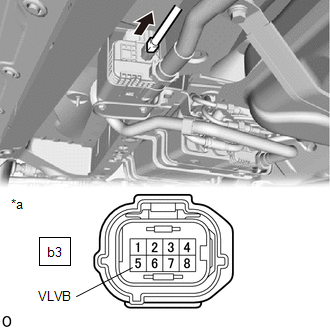

1. Turn the engine switch off.

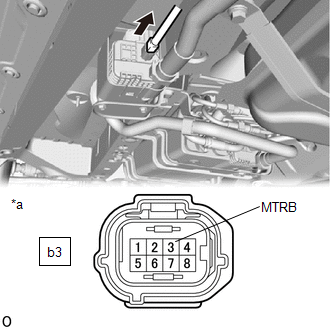

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   (to Canister Pump Module)

   *a	Front view of wire harness connector (to Canister Pump Module)

2. Disconnect the canister pump module connector.
3. Turn the engine switch on (IG).
4. Measure the voltage according to the value(s) in the table below.

   Result

   Tester Connection	Switch Condition	Specified Condition	Suspected Trouble Area	Proceed to
   b3-5 (VLVB) - Body ground	Engine switch on (IG)	11 to 14 V	Wire harness or connector between vent valve and ECM Vent valve Canister (charcoal filter inside canister) clogged Trap canister (filter inside canister clogged) ECM	A
   		Below 3 V	Power source wire harness of vent valve	B

Result:

B

See step  32

Result:

A

See step  23

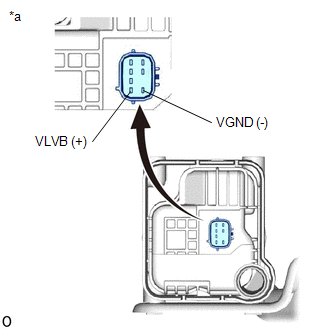

1. Turn the engine switch off.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Component without harness connected (Canister Pump Module)

2. Disconnect the canister pump module connector.
3. Apply the battery voltage to terminals VLVB and VGND of the pump module.
4. Touch the canister pump module to confirm the vent valve operation.

   Result

   Condition	Tester Result	Suspected Trouble Area	Proceed to
   Apply battery voltage to terminals VLVB and VGND	Operating	Wire harness or connector between vent valve and ECM Canister (charcoal filter inside canister) clogged Trap canister (filter inside canister clogged) ECM	A
   	Not operating	Vent valve	B

Result:

B

See step  41

Result:

A

See step  24

1. Turn the engine switch off.
2. Disconnect the ECM connector.
3. Disconnect the canister pump module connector.
4. Measure the resistance according to the value(s) in the table below.

   Result

   Tester Connection	Condition	Test Result	Suspected Trouble Area	Proceed to
   A35-7 (VPMP) - b3-1 (VGND)	Always	Below 1 Ω	Canister (charcoal filter inside canister) clogged Trap canister (filter inside canister clogged) ECM	A
   		10 kΩ or higher	Wire harness or connector between ECM and canister pump module	B

Result:

B

See step  32

Result:

A

See step  25

1. Check for filter blockage in the canister.

   Refer to INSPECTION [10/2014 - ]

   OK

   No blockages in the canister.

   Result

   Proceed to
   OK
   NG

Result:

NG

See step  28

Result:

OK

See step  26

1. Check for filter blockage in the trap canister.

   Refer to INSPECTION [10/2014 - ]

   OK

   No blockages in the trap canister.

   Result

   Proceed to
   OK
   NG

Result:

OK

See step  34

Result:

NG

See step  27

1. Replace the trap canister.

   Refer to REMOVAL [10/2014 - ]

   NOTE:

   • When replacing the trap canister, check the canister interior, canister pump module interior and related pipes for water, fuel and other liquids. If liquids are present, check for disconnections and/or cracks in the following: 1) the pipe from the air inlet port to the canister pump module; 2) the canister filter; and 3) the fuel tank vent hose.
   • Check for filter blockage in the canister filter. if the canister filter has blockages, replace the canister filter.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	Fuel Tank Vent Hose	*2	Vent Hose
   *3	Air Inlet Port	*4	Fuel Tank
   *5	Canister Pump Module	*6	Canister
   *7	Canister Filter	*8	Trap Canister
   *9	Fuel Tank Cap Assembly	-	-
   *a	Inspection Area (check for disconnection and/or cracks)	-	-

   Result

   Proceed to
   NEXT

Result:

NEXT

See step  42

1. Replace the canister.

   Refer to REMOVAL [10/2014 - ]

   NOTE:

   • When replacing the canister, check the trap canister interior, canister pump module interior and related pipes for water, fuel and other liquids. If liquids are present, check for disconnections and/or cracks in the following: 1) the pipe from the air inlet port to the canister pump module; 2) the canister filter; and 3) the fuel tank vent hose.
   • Check for filter blockage in the canister filter. if the canister filter has blockages, replace the canister filter.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	Fuel Tank Vent Hose	*2	Vent Hose
   *3	Air Inlet Port	*4	Fuel Tank
   *5	Canister Pump Module	*6	Canister
   *7	Canister Filter	*8	Trap Canister
   *9	Fuel Tank Cap Assembly	-	-
   *a	Inspection Area (check for disconnection and/or cracks)	-	-

   Result

   Proceed to
   NEXT

Result:

NEXT

See step  42

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Check the EVAP pressure in step 3/7.

   Result

   DTC*	Result	Suspected Trouble Area	Proceed to
   P043F-00	EVAP pressure less than [reference pressure] measured in step 2/7	Reference orifice high-flow	A
   P2400-7F	EVAP pressure almost same as [reference pressure] measured in step 2/7	Leak detection pump stuck off	B

   *: These DTCs are already present in the ECM when the vehicle arrives and are confirmed in the "Confirm DTC" procedure above.

   HINT:

   The first reference pressure is the value determined in step 2/7.

Result:

A

See step  41

Result:

B

See step  30

1. Turn the engine switch off.
2. Disconnect the canister pump module connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Front view of wire harness connector (to Canister Pump Module)

3. Turn the engine switch on (IG).
4. Measure the voltage according to the value(s) in the table below.

   Result

   Tester Connection	Condition	Test Result	Suspected Trouble Area	Proceed to
   b3-3 (MTRB) - Body ground	Engine switch on (IG)	9 to 14 V	Wire harness or connector between leak detection pump and body ground Leak detection pump	A
   		Below 3 V	Wire harness or connector between leak detection pump and ECM ECM	B

Result:

B

See step  33

Result:

A

See step  31

1. Turn the engine switch off.
2. Disconnect the canister pump module connector.
3. Measure the resistance according to the value(s) in the table below.

   Result

   Tester Connection	Condition	Specified Condition	Suspected Trouble Area	Proceed to
   b3-4 (MGND) - Body ground	Always	Below 1 Ω	Leak detection pump	A
   		10 kΩ or higher	Wire harness or connector between canister pump module and body ground	B

Result:

A

See step  41

Result:

B

See step  32

Result

Result:

NEXT

See step  42

1. Turn the engine switch off.
2. Disconnect the canister pump module connector.
3. Disconnect the ECM connector.
4. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   A35-20 (MPMP) - b3-3 (MTRB)	Always	Below 1 Ω
   A35-20 (MPMP) or b3-3 (MTRB) - Body ground and other terminals	Always	10 kΩ or higher

   Result

   Result	Suspected Trouble Area	Proceed to
   OK	ECM	A
   NG	Wire harness or connector between ECM and canister pump module	B

Result:

B

See step  32

Result:

A

See step  34

1. Replace the ECM.

   Refer to REMOVAL [10/2014 - 05/2019]

   Result

   Proceed to
   NEXT

Result:

NEXT

See step  42

1. Turn the engine switch off.
2. Disconnect the canister pump module connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Component without harness connected (Canister Pump Module)

3. Apply the battery voltage to terminals VLVB and VGND of the pump module.
4. Touch the canister pump module to confirm the vent valve operation.

   Result

   Condition	Test Result	Suspected Trouble Area	Proceed to
   Apply battery voltage to terminals VLVB and VGND	Operating	Wire harness or connector between vent valve and ECM Leak detection pump performance deteriorates Leak detection pump circuit malfunctioning (large resistance exists in the circuit) ECM	A
   	Not operating	Vent valve	B

Result:

B

See step  41

Result:

A

See step  36

1. Turn the engine switch off.
2. Disconnect the ECM connector.
3. Disconnect the canister pump module connector.
4. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   A35-7 (VPMP) - b3-1 (VGND)	Always	Below 1 Ω
   A35-7 (VPMP) or b3-1 (VGND) - Body ground and other terminals	Always	10 kΩ or higher

   Result

   Result	Suspected Trouble Area	Proceed to
   OK	Leak detection pump performance deteriorates Leak detection pump circuit malfunctioning (large resistance exists in the circuit) ECM	A
   NG	Wire harness or connector between ECM and canister pump module	B

Result:

B

See step  32

Result:

A

See step  37

1. Disconnect the canister pump module connector.
2. Measure the resistance according to the value(s) in the table below.

   Result

   Tester Connection	Condition	Specified Condition	Suspected Trouble Area	Proceed to
   b3-4 (MGND) - Body ground	Always	Below 1 Ω	Canister pump module Wire harness or connector between canister pump module and ECM ECM	A
   		10 kΩ or higher	Wire harness or connector between canister pump module and body ground	B

Result:

B

See step  32

Result:

A

See step  38

1. Disconnect the canister pump module connector.
2. Disconnect the ECM connector.
3. Measure the resistance according to the value(s) in the table below.

   Result

   Tester Connection	Condition	Specified Condition	Suspected Trouble Area	Proceed to
   A35-20 (MPMP) - b3-3 (MTRB)	Always	Below 1 Ω	Canister pump module ECM	A
   		10 kΩ or higher	Wire harness or connector between ECM and canister pump module	B

Result:

B

See step  32

Result:

A

See step  39

1. Replace the canister pump module.

   Refer to REMOVAL [10/2014 - ]

   NOTE:

   • When replacing the canister pump module, check the canister pump module interior, canister interior and related pipes for water, fuel and other liquids. If liquids are present, check for disconnections and/or cracks in the following: 1) the pipe from the air inlet port to the canister pump module; 2) the canister filter; and 3) the fuel tank vent hose. If liquids are present in the canister interior, replace canister and canister pump module together.
   • Check for filter blockage in the canister. If the charcoal filter inside the canister is clogged, replace the canister and canister pump module together.
   • Check for filter blockage in the canister filter. if the canister filter has blockages, replace the canister filter.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	Fuel Tank Vent Hose	*2	Vent Hose
   *3	Air Inlet Port	*4	Fuel Tank
   *5	Canister Pump Module	*6	Canister
   *7	Canister Filter	*8	Trap Canister
   *9	Fuel Tank Cap Assembly	-	-
   *a	Inspection Area (check for disconnection and/or cracks)	-	-

   Result

   Proceed to
   NEXT

Result:

NEXT

See step  40

1. Connect the Techstream to the DLC3.
2. Turn the engine switch on (IG).
3. Turn the Techstream on.
4. Clear the DTCs.

   Powertrain > Engine > Clear DTCs

5. Enter the following menus: Powertrain / Engine / Utility / Evaporative System Check / Automatic Mode.

   Powertrain > Engine > Utility

   Tester Display
   Evaporative System Check

6. After the Evaporative System Check is completed, check for pending DTCs by entering the following menus: Powertrain / Engine / Trouble Codes.

   Powertrain > Engine > Trouble Codes

   Result

   Result	Proceed to
   EVAP system DTCs are output	A
   No DTCs output (No pending DTCs output)	B

Result:

A

See step  34

Result:

B

END

1. Replace the canister pump module.

   Refer to REMOVAL [10/2014 - ]

   NOTE:

   • When replacing the canister pump module, check the canister pump module interior, canister interior, trap canister interior and related pipes for water, fuel and other liquids. If liquids are present, check for disconnections and/or cracks in the following: 1) the pipe from the air inlet port to the canister pump module; 2) the canister filter; and 3) the fuel tank vent hose. If liquids are present in the canister interior or trap canister interior, replace the canister, trap canister and canister pump module together.
   • Check for filter blockage in the canister and trap canister. If the charcoal filter inside the canister or trap canister is clogged, replace the canister, trap canister and canister pump module together.
   • Check for filter blockage in the canister filter. If the canister filter has blockages, replace the canister filter.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	Fuel Tank Vent Hose	*2	Vent Hose
   *3	Air Inlet Port	*4	Fuel Tank
   *5	Canister Pump Module	*6	Canister
   *7	Canister Filter	*8	Trap Canister
   *9	Fuel Tank Cap Assembly	-	-
   *a	Inspection Area (check for disconnection and/or cracks)	-	-

   Result

   Proceed to
   NEXT

Result:

NEXT

See step  42

1. Connect the Techstream to the DLC3.
2. Turn the engine switch on (IG).
3. Turn the Techstream on.
4. Clear the DTCs.

   Powertrain > Engine > Clear DTCs

5. Turn the engine switch off and wait for at least 30 seconds.
6. Turn the engine switch on (IG) and turn the GTS on.
7. Enter the following menus: Powertrain / Engine / Utility / Evaporative System Check / Automatic Mode.

   Powertrain > Engine > Utility

   Tester Display
   Evaporative System Check

8. After the Evaporative System Check is completed, check for pending DTCs by entering the following menus: Powertrain / Engine / Trouble Codes.

   Powertrain > Engine > Trouble Codes

   HINT:

   If no pending DTCs are found, the repair has been successfully completed.

   Result

   Proceed to
   NEXT

Result:

NEXT

END

1. Check the canister pressure sensor circuit, referring to DTC P0450-11 canister pressure sensor circuit procedure.

   Refer to DTC P0450-11: Evaporative Emission System Pressure Sensor/Switch Circuit Short to Ground; DTC P0450-15: Evaporative Emission System Pressure Sensor/Switch Circuit Short to Battery or Open; DTC P0450-2F: Evaporative Emission System Pressure Sensor/Switch Signal Erratic [10/2014 - ]

   Result

   Proceed to
   NEXT

Result:

NEXT

See step  42
