System Diagram [05/2019 - ]

Fig 1: SFI System Wiring Diagram [05/2019 - ] (1 Of 5)
GTY506143Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: SFI System Wiring Diagram [05/2019 - ] (2 Of 5)
GTY505402Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

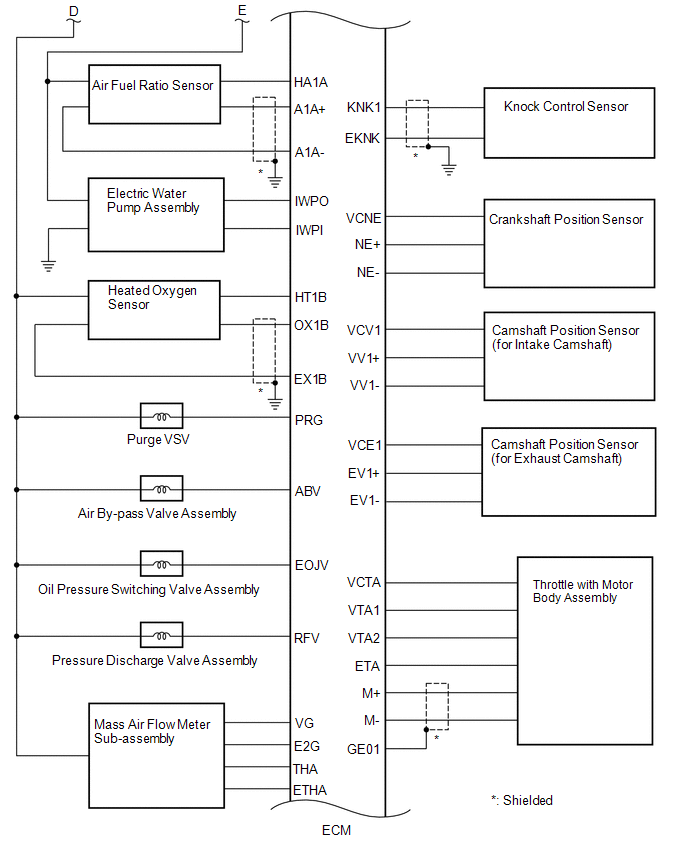

Fig 3: SFI System Wiring Diagram [05/2019 - ] (3 Of 5)
GTY947846Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 4: SFI System Wiring Diagram [05/2019 - ] (4 Of 5)
GTY507851Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 5: SFI System Wiring Diagram [05/2019 - ] (5 Of 5)
GTY499121Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
