Installation [10/2014 - ]: Procedure

Refer to PROCEDURE - Step 5 [10/2014 - 09/2015] , or refer to PROCEDURE - Step 5 [09/2015 - 05/2019] , or refer to PROCEDURE - Step 5 [05/2019 - ]

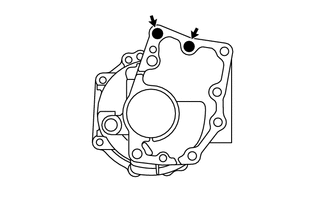

1. Clean the bolt holes.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

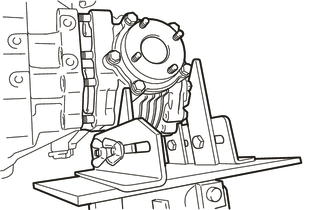

2. Support the transfer assembly with a transmission jack, etc., to prevent it from falling, and then install the transfer assembly to the automatic transaxle assembly with the 6 nuts and 2 new bolts.

   Torque: 68.6 N.m (700 kgf/cm, 51 ft.lbf)

   NOTE:

   Do not support the transfer assembly by the transfer and transaxle setting stud bolt and transfer output shaft.

   Make sure to support the transfer assembly by the transfer case and No. 1 transfer case cover.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Refer to PROCEDURE - Step 7 [10/2014 - 09/2015] , or refer to PROCEDURE - Step 7 [09/2015 - 05/2019] , or refer to PROCEDURE - Step 7 [05/2019 - ]

Refer to PROCEDURE - Step 10 [10/2014 - 09/2015] , or refer to PROCEDURE - Step 10 [09/2015 - 05/2019] , or refer to PROCEDURE - Step 10 [05/2019 - ]

Refer to INSTALLATION [10/2014 - 09/2015] , or refer to INSTALLATION [09/2015 - 05/2019] , or refer to INSTALLATION [05/2019 - ]
