Vehicle Identification And Serial Numbers [10/2014 - 09/2017]

  1. VEHICLE IDENTIFICATION NUMBER
    1. The vehicle identification number is stamped on the vehicle body and on the certification label as shown in the illustration.

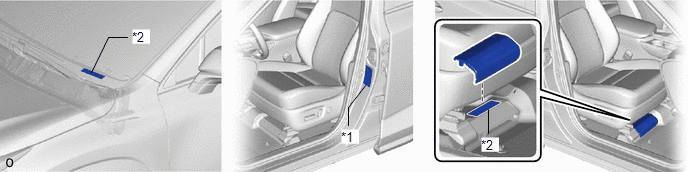

      Fig 1: Vehicle Identification Number Is Stamped On Vehicle Body And On Certification Label
      GTY502243Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Certification Label *2 Vehicle Identification Number
    2. The vehicle identification number is stamped on the case as shown in the illustration.

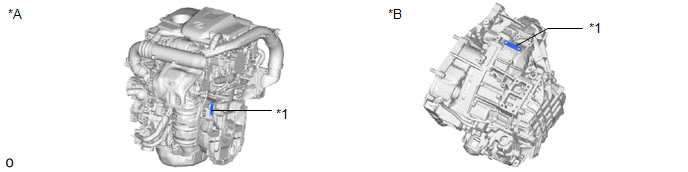

      Fig 2: Vehicle Identification Number Location
      GTY495328Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A 8AR-FTS *B U661E, U661F
      *1 Vehicle Identification Number - -
  2. ENGINE SERIAL NUMBER AND TRANSAXLE SERIAL NUMBER
    1. The engine serial number is stamped on the cylinder block of the engine as shown in the illustration.

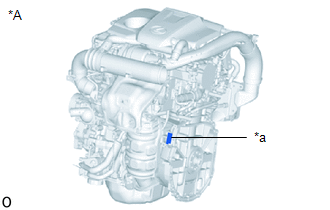

      Fig 3: Locating Engine Serial Number
      GTY521642Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A 8AR-FTS
      *a Engine Serial Number
    2. The transaxle serial number is stamped on the case as shown in the illustration.

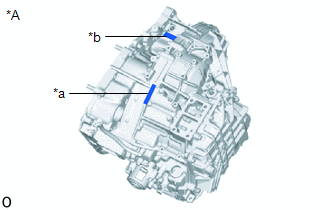

      Fig 4: Transaxle Serial Number Location
      GTY500945Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A U661E, U661F
      *a Transaxle Serial Number
      *b Transaxle Type
