Removal [10/2014 - 09/2017]: Procedure

Refer to REMOVAL [10/2014 - 05/2019]

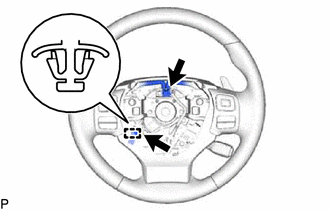

1. Disconnect the connector from the turn signal switch assembly with spiral cable.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   HINT:

   If the vehicle is equipped with a cruise control switch and shift paddle switch, disconnect their connectors and connector clamps.

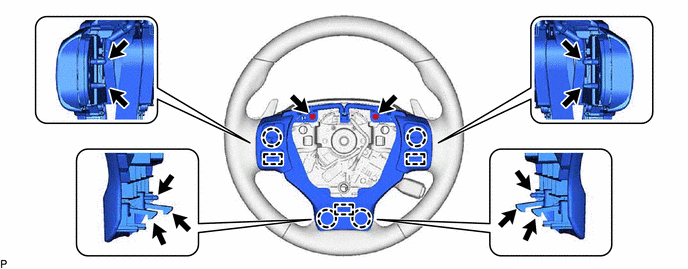

2. Remove the 2 screws.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

3. Detach the 3 guide pins and 4 claws and remove the switch assembly.
