Safety Connect System - Diagnostics - Introduction
>>
Safety Connect System
>>
System Diagram [11/2017 - 11/2019]
>>
System Diagram [11/2017 - 11/2019]
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

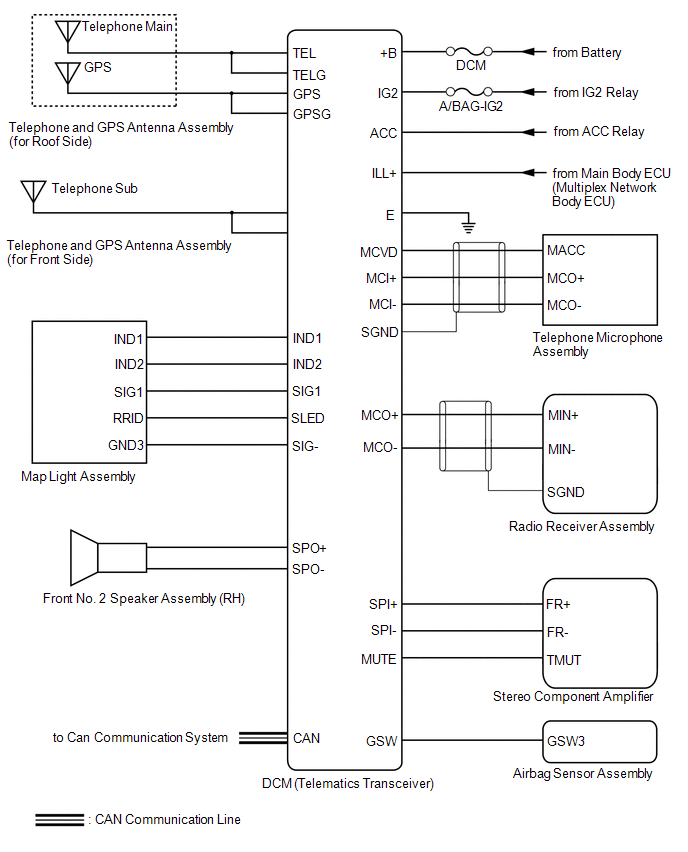

System Diagram [11/2017 - 11/2019]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
