Components [09/2014 - 10/2018]

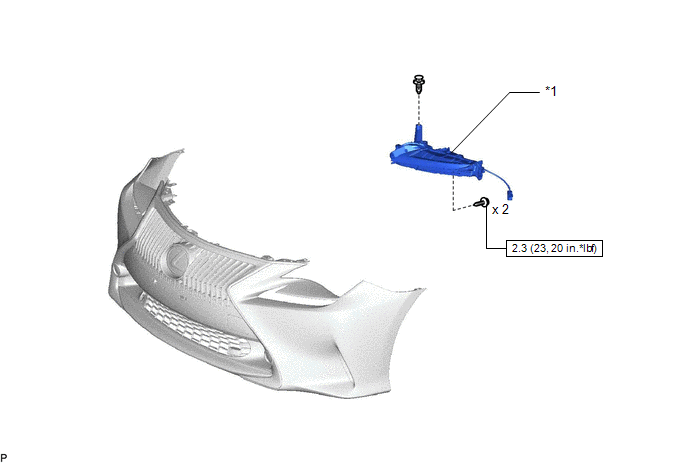

Fig 1: Clearance Light Assembly Replacement Components With Torque Specifications [09/2014 - 10/2018]
GTY517235Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 CLEARANCE LIGHT ASSEMBLY - -
