Components [10/2018 - ]

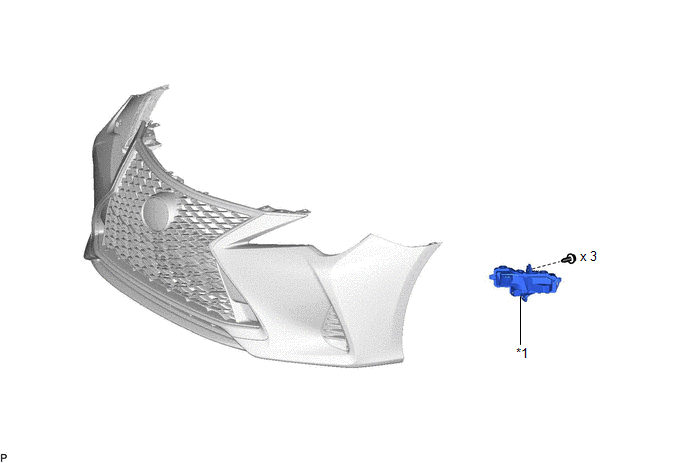

Fig 1: Cornering Light Assembly Replacement Components [10/2018 - ]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout
Description
Callout
Description
*1
CORNERING LIGHT ASSEMBLY
-
-
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
