Components [10/2018 - ]

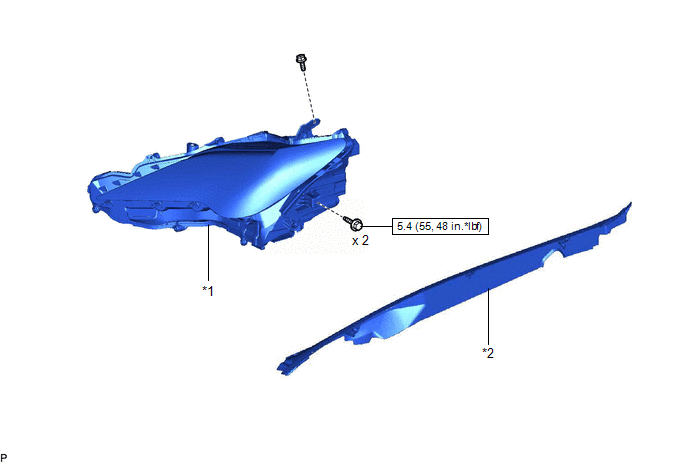

Fig 1: Headlight Assembly Replacement Components With Torque Specifications (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	HEADLIGHT ASSEMBLY	*2	UPPER FRONT FENDER PROTECTOR
	N.m (kgf/cm, ft.lbf): Specified torque	-	-

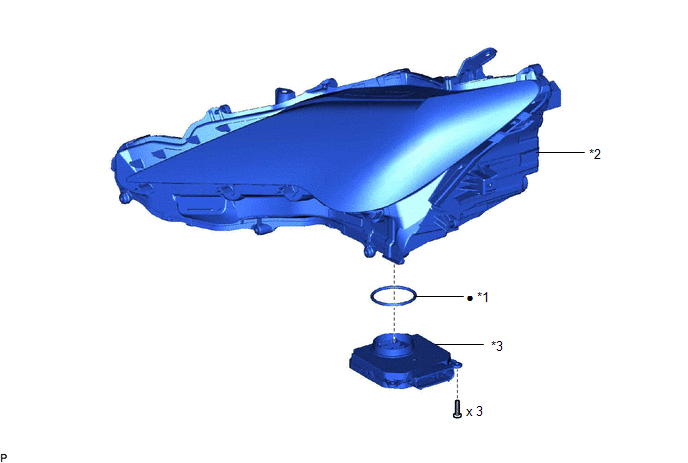

Fig 2: Headlight Assembly Replacement Components (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	HEADLIGHT GASKET	*2	HEADLIGHT UNIT
*3	NO. 1 HEADLIGHT ECU SUB-ASSEMBLY	-	-
•	Non-reusable part	-	-

Fig 3: Headlight Assembly Replacement Components (3 Of 3)

Callout	Description	Callout	Description
*A	Bracket for Repair	-	-
*1	LOWER HEADLIGHT PROTECTOR RETAINER	*2	UPPER HEADLIGHT PROTECTOR RETAINER
