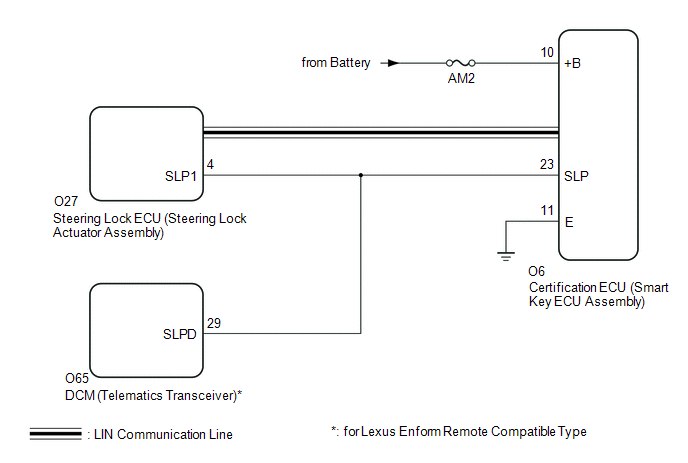

DTC B2285: Steering Lock Position Signal Circuit Malfunction [09/2014 - 11/2019]: Wiring Diagram

GTY508268Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
