System Diagram [09/2014 - ]

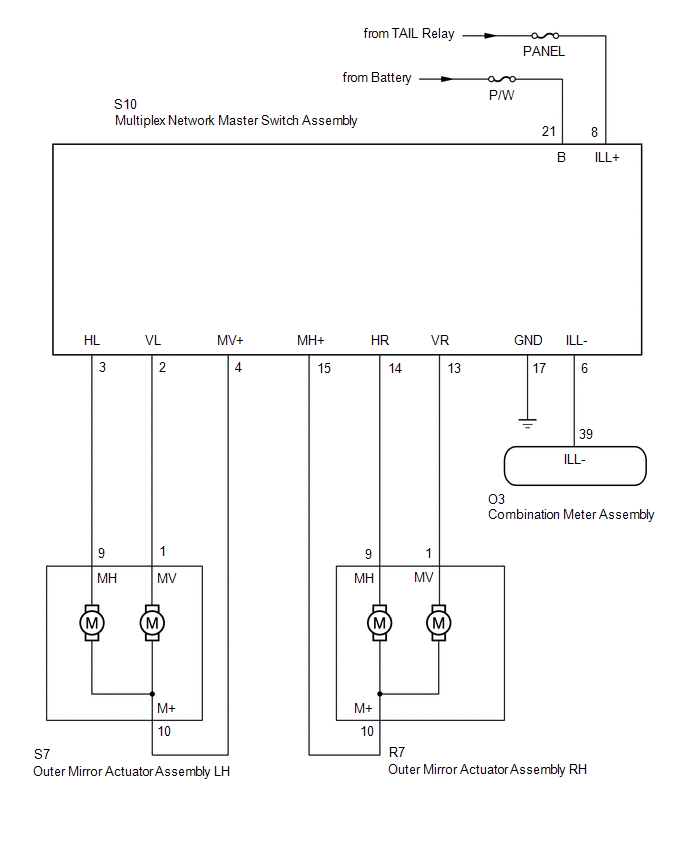

  1. ELECTRICAL REMOTE CONTROL MIRROR FUNCTION
    GTY505882Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

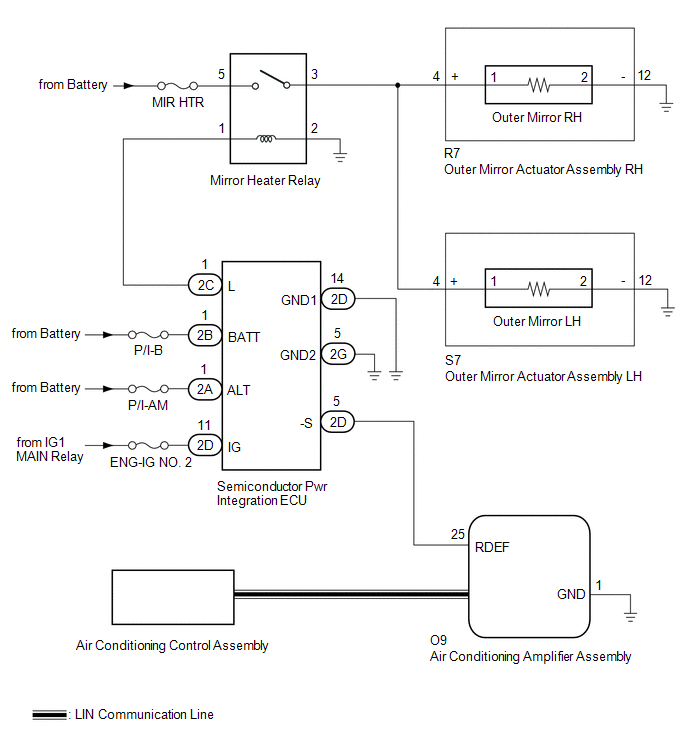

  2. MIRROR HEATER FUNCTION
    GTY516845Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    COMMUNICATION TABLE

    Sender Receiver Signal Communication Method
    Air Conditioning Control Assembly Air Conditioning Amplifier Assembly Mirror heater switch (rear window defogger switch) signal LIN
