DTC C1298/98: Linear Solenoid Circuit [09/2014 - 09/2020]: Procedure

1. Disconnect the F43 transfer transmission wire connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

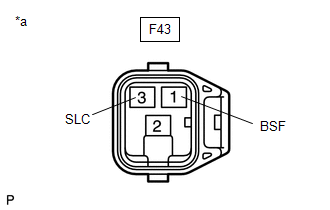

   *a	Component without harness connected (Transfer Transmission Wire)

2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   F43-1 (BSF) - F43-3 (SLC)	20°C (68°F)	5.0 to 5.6 Ω
   F43-1 (BSF) - Body ground	Always	10 kΩ or higher
   F43-3 (SLC) - Body ground	Always	10 kΩ or higher

   Result

   Proceed to
   OK
   NG

Result:

NG

See step  3

Result:

OK

See step  2

1. Disconnect the A54 4WD ECU assembly connector.
2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   A54-2 (SLC+) - F43-1 (BSF)	Always	Below 1 Ω
   A54-1 (SLC-) - F43-3 (SLC)	Always	Below 1 Ω
   A54-2 (SLC+) - Body ground	Always	10 kΩ or higher
   A54-1 (SLC-) - Body ground	Always	10 kΩ or higher
   F43-1 (BSF) - Body ground	Always	10 kΩ or higher
   F43-3 (SLC) - Body ground	Always	10 kΩ or higher

   Result

   Proceed to
   OK
   NG

Result:

OK

REPLACE 4WD ECU ASSEMBLY. Refer to  COMPONENTS [09/2014 - ]

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR (SLC+, SLC- CIRCUIT)

1. Remove the transfer control solenoid assembly.

   Refer to COMPONENTS [09/2014 - ]

2. Inspect the transfer control solenoid assembly.

   Refer to INSPECTION [09/2014 - ]

   Result

   Proceed to
   OK
   NG

Result:

OK

REPLACE TRANSFER TRANSMISSION WIRE. Refer to  COMPONENTS [09/2014 - ]

Result:

NG

REPLACE TRANSFER CONTROL SOLENOID ASSEMBLY. Refer to  COMPONENTS [09/2014 - ]
