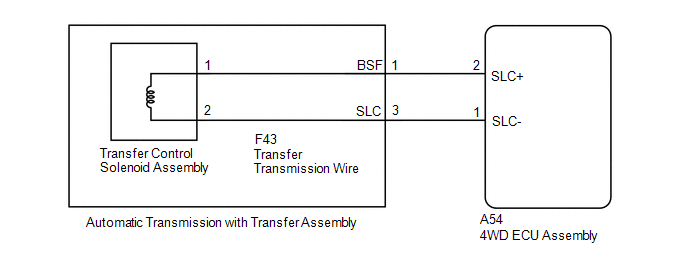

DTC C1298/98: Linear Solenoid Circuit [09/2014 - 09/2020]: Wiring Diagram

GTY515101

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
