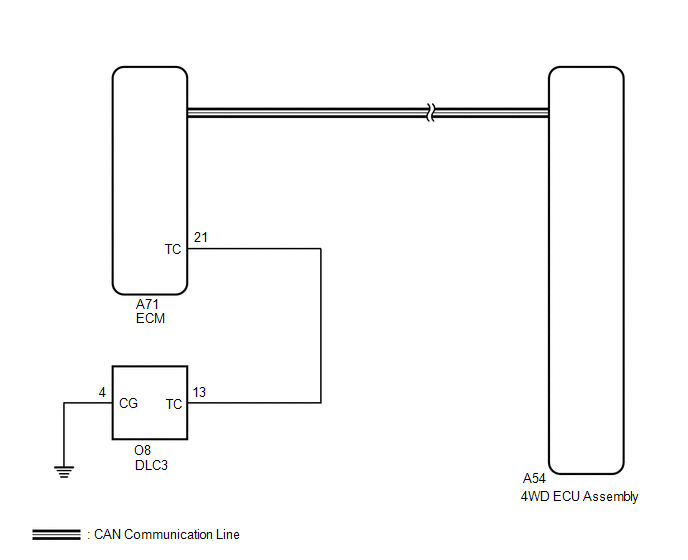

TC and CG Terminal Circuit [09/2014 - 11/2017]: Wiring Diagram

GTY517330

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
