TC and CG Terminal Circuit [11/2017 - 10/2018]: Procedure
- CHECK CAN COMMUNICATION SYSTEM
- Check if CAN communication system DTCs are output.
Refer to DTC CHECK / CLEAR [09/2014 - 10/2018]
HINT:
When DTCs indicating a CAN communication system malfunction are output, repair the CAN communication system before repairing each corresponding sensor.
Chassis > Four Wheel Drive > Trouble Codes
Result
Result Proceed to CAN communication system DTCs are not output A CAN communication system DTCs are output B
Result:
B
GO TO CAN COMMUNICATION SYSTEM (HOW TO PROCEED WITH TROUBLESHOOTING). Refer to HOW TO PROCEED WITH TROUBLESHOOTING [11/2017 - 10/2018]
Result:
A
See step 2
- Check if CAN communication system DTCs are output.
- INSPECT DLC3 (TC TERMINAL VOLTAGE)
- Turn the engine switch on (IG).
*a Front view of DLC3 - Measure the voltage according to the value(s) in the table below.
Standard Voltage
Tester Connection Condition Specified Condition O8-13 (TC) - O8-4 (CG) Engine switch on (IG) 11 to 14 V Result
Proceed to OK NG
Result:
NG
See step 4
Result:
OK
See step 3
- Turn the engine switch on (IG).
- REPLACE ECM
- Replace the ECM.
*a Front view of DLC3 Refer to COMPONENTS [11/2017 - ]
- Using SST, connect terminals 13 (TC) and 4 (CG) of the DLC3.
- SST: 09843-18040
- Turn the engine switch on (IG).
- Check that the "DIAG AWD FF" or "DIAG AWD XX (DTC)" is displayed.
Result
Result Proceed to "DIAG AWD FF" or "DIAG AWD XX (DTC)" is displayed A "DIAG AWD FF" and "DIAG AWD XX (DTC)" are not displayed B
Result:
A
END
Result:
B
REPLACE 4WD ECU ASSEMBLY. Refer to COMPONENTS [09/2014 - ]
- Replace the ECM.
- CHECK HARNESS AND CONNECTOR (ECM - DLC3)
- Disconnect the A91 ECM connector.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition A91-33 (TC) - O8-13 (TC) Always Below 1 Ω O8-13 (TC) - Body ground Always 10 kΩ or higher Result
Proceed to OK NG
Result:
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR (TC TERMINAL CIRCUIT)
Result:
OK
See step 5
- CHECK HARNESS AND CONNECTOR (CG OF DLC3 - BODY GROUND)
- Measure the resistance according to the value(s) in the table below.
Standard Resistance

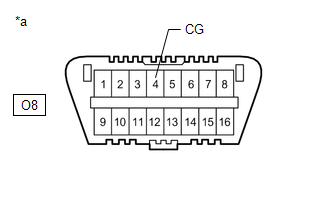

Tester Connection Condition Specified Condition O8-4 (CG) - Body ground Always Below 1 Ω *a Front view of DLC3 Result
Proceed to OK NG
Result:
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
Result:
OK
See step 6
- Measure the resistance according to the value(s) in the table below.
- REPLACE ECM
- Replace the ECM.
*a Front view of DLC3 Refer to COMPONENTS [11/2017 - ]
- Using SST, connect terminals 13 (TC) and 4 (CG) of the DLC3.
- SST: 09843-18040
- Turn the engine switch on (IG).
- Check that the "DIAG AWD FF" or "DIAG AWD XX (DTC)" is displayed.
Result
Result Proceed to "DIAG AWD FF" or "DIAG AWD XX (DTC)" is displayed A "DIAG AWD FF" and "DIAG AWD XX (DTC)" are not displayed B
Result:
A
END
Result:
B
REPLACE 4WD ECU ASSEMBLY. Refer to COMPONENTS [09/2014 - ]
- Replace the ECM.
