System Diagram [10/2015 - 11/2017]

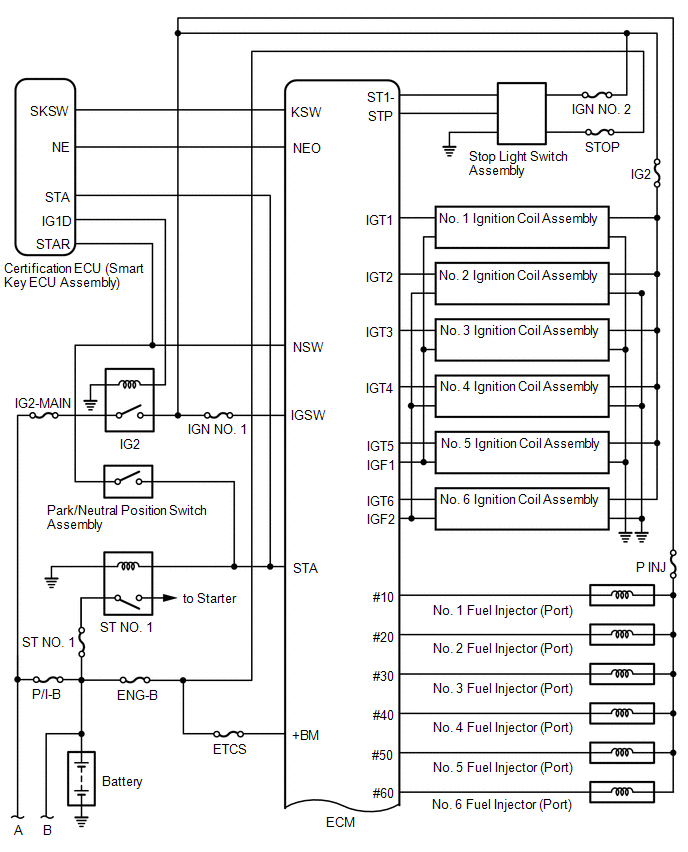

GTY616624Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

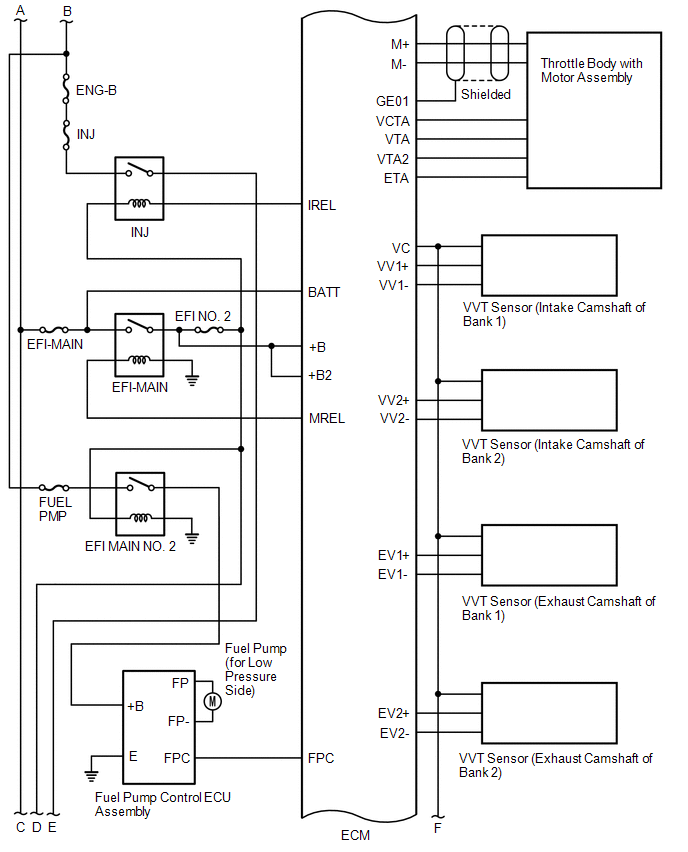

GTY665082Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

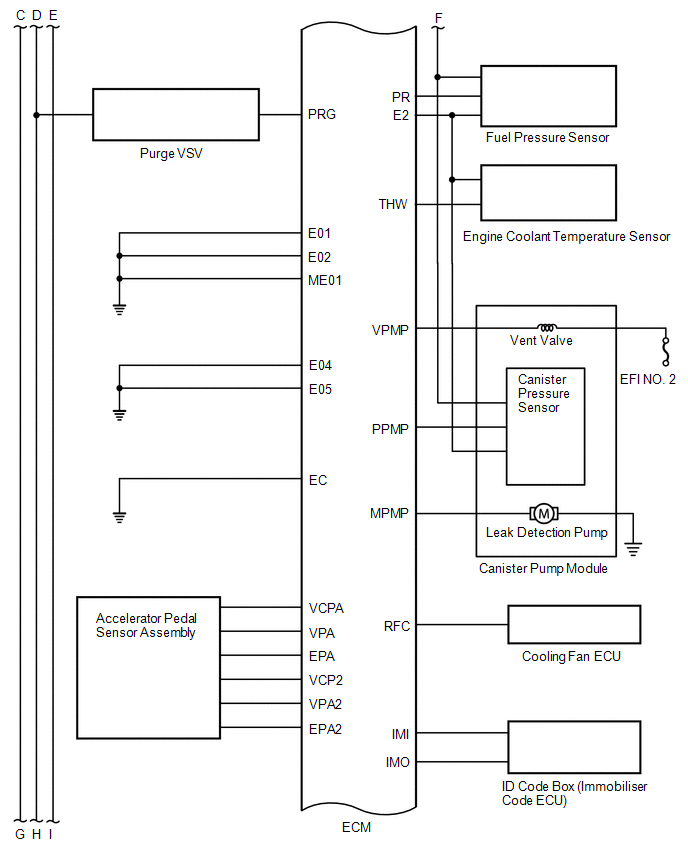

GTY497832Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

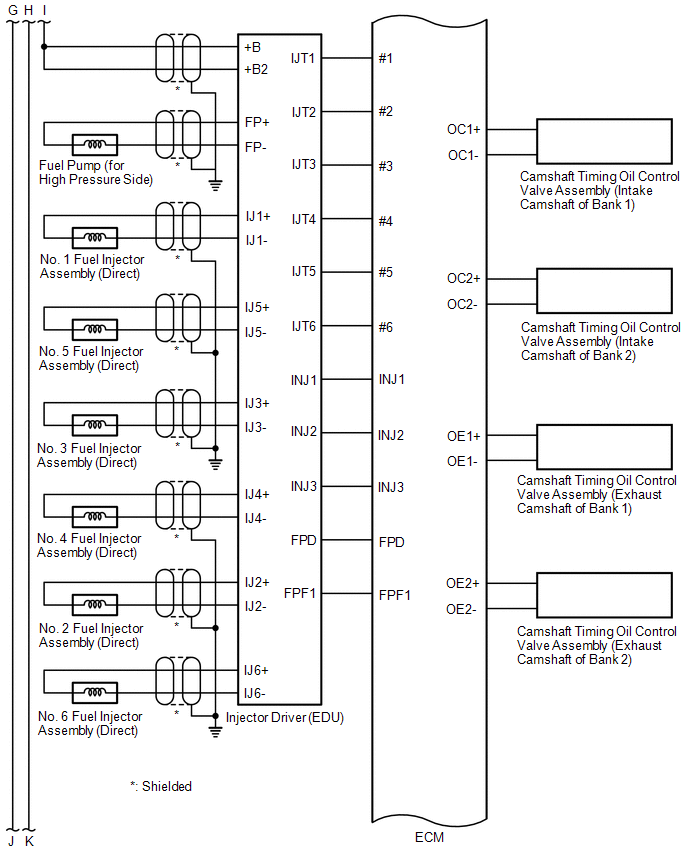

GTY466768Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

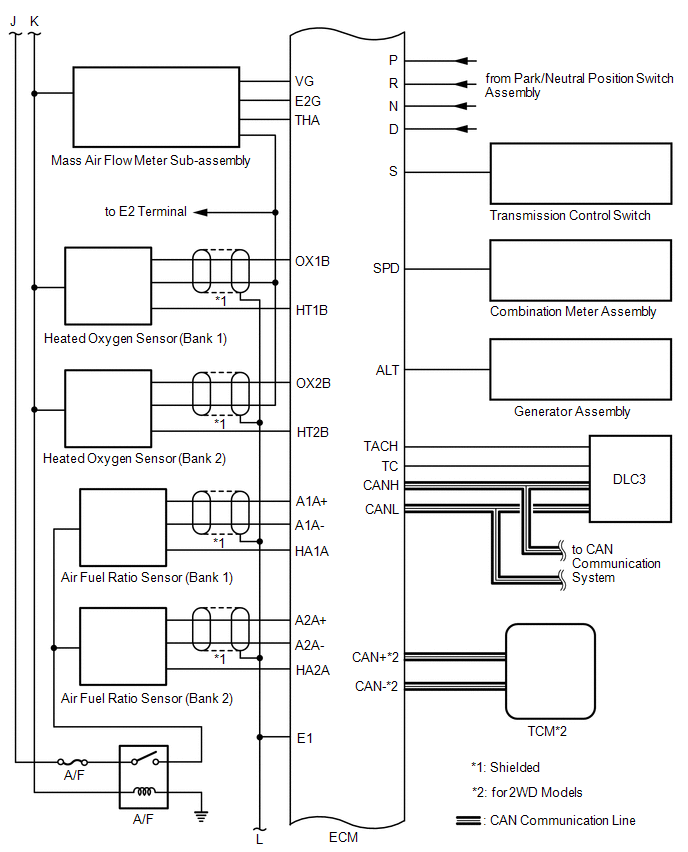

GTY515837Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

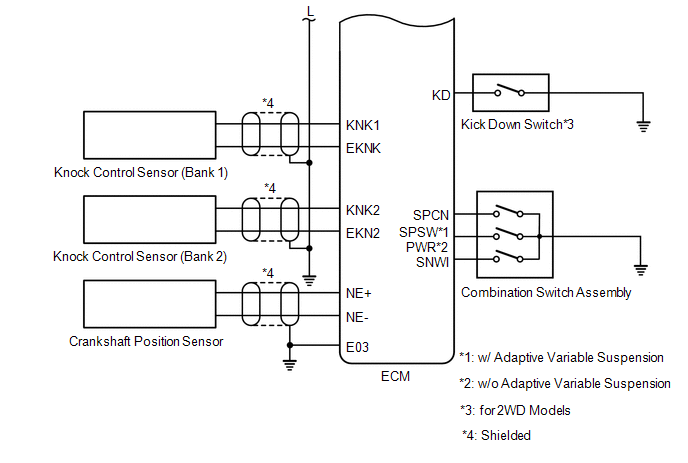

GTY506829Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
