Components [09/2014 - 10/2022]

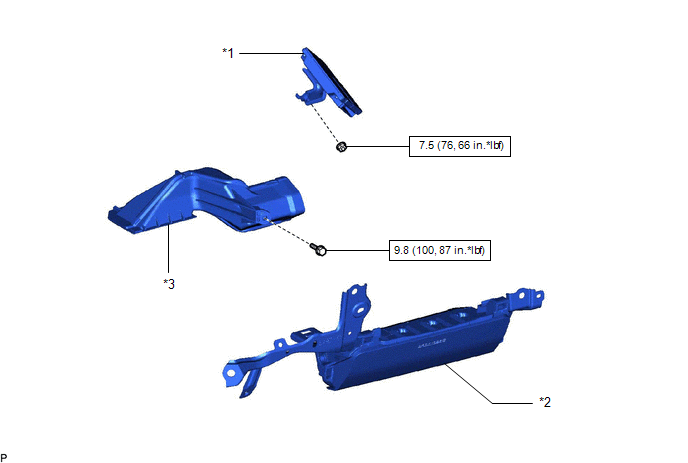

Fig 1: Driving Support ECU Replacement Components With Torque Specifications [09/2014 - 11/2017]
GTY516053Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 DRIVING SUPPORT ECU ASSEMBLY *2 LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY
*3 NO. 1 AIR DUCT SUB-ASSEMBLY - -
N.m (kgf/cm, ft.lbf): Specified torque - -
