Components [11/2017 - 10/2022]

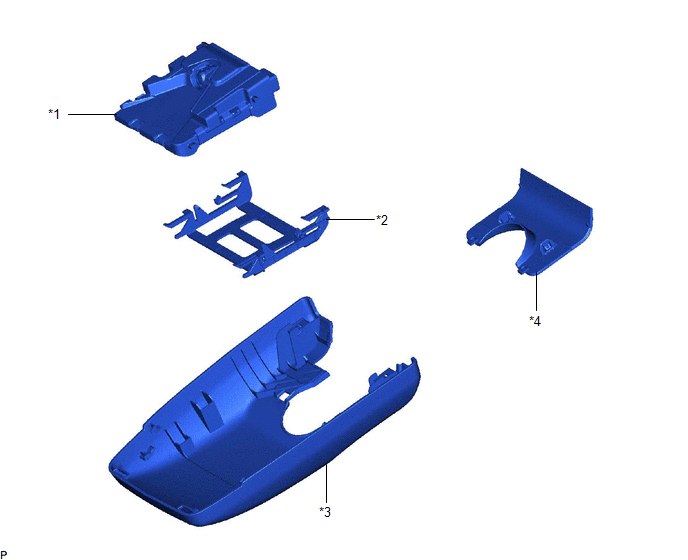

Fig 1: Front Camera Replacement Components [11/2017 - 10/2022]
GTY819512Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 FORWARD RECOGNITION CAMERA *2 FORWARD RECOGNITION LATCH
*3 NO. 1 FORWARD RECOGNITION COVER *4 NO. 2 FORWARD RECOGNITION COVER
