Installation [11/2017 - 10/2022]: Procedure

INSTALL FORWARD RECOGNITION CAMERA

When using a new forward recognition camera:

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

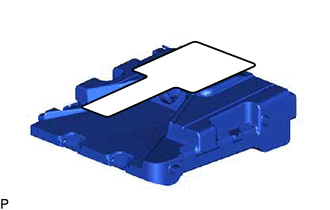

Remove the protective film.
NOTE:
Do not touch the camera lens after removing the protective film.

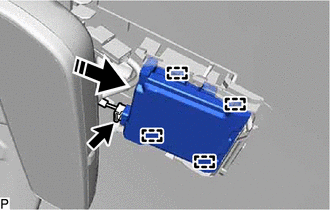

Engage the 4 guides as shown in the illustration.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Install in this Direction

NOTE:

Do not touch the camera lens.

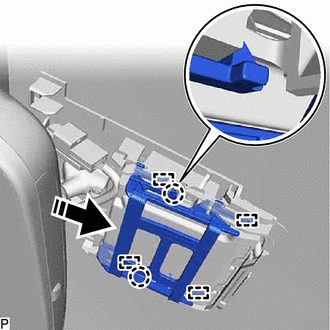

INSTALL FORWARD RECOGNITION LATCH

Engage the 4 guides and 2 claws as shown in the illustration to install the forward recognition latch.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Install in this Direction

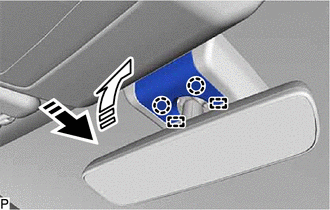

INSTALL NO. 1 FORWARD RECOGNITION COVER

Engage the 2 clips and 2 guides as shown in the illustration to install the No. 1 forward recognition cover.

Install in this Direction

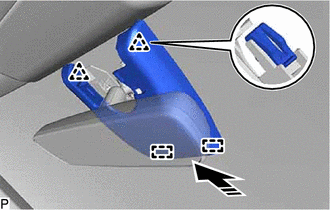

INSTALL NO. 2 FORWARD RECOGNITION COVER

Engage the 2 guides and 2 claws as indicated by the arrows, in the order shown in the illustration to install the No. 2 forward recognition cover.

Fig 1: No. 2 Forward Recognition Cover Guide And Claw Engagement Sequence

	Install in this Direction (1)
	Install in this Direction (2)

ADJUST FORWARD RECOGNITION CAMERA
1. If the forward recognition camera has been replaced with a new one or the windshield glass has been removed and installed, it is necessary to perform Forward Recognition Camera Learning.
  Refer to ADJUSTMENT (SEQUENTIAL RECOGNITION) [11/2017 - 10/2022]
