Components [09/2014 - 11/2017]

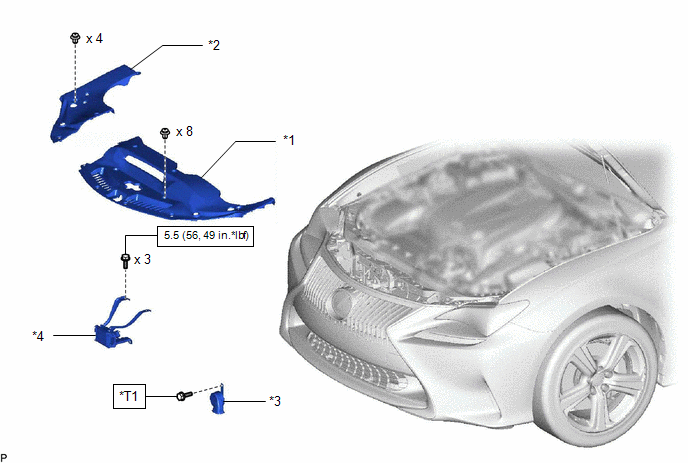

Fig 1: Millimeter Wave Radar Sensor Replacement Components With Torque Specifications [09/2014 - 11/2017]
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | COOL AIR INTAKE DUCT SEAL | *2 | ENGINE ROOM SIDE COVER |
| *3 | LOW PITCHED HORN ASSEMBLY | *4 | MILLIMETER WAVE RADAR SENSOR ASSEMBLY |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - | |
| *T1 | Type A: 19 (194, 14) Type B: 23 (235, 17) |
- | - |
