Components [11/2017 - 11/2019]

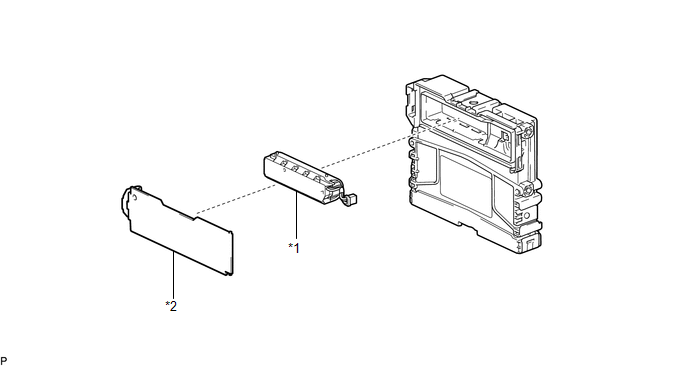

Fig 1: Back-Up Battery Replacement Components [11/2017 - 11/2019]
GTY775300Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 BACK-UP BATTERY *2 BATTERY COVER
