Components [10/2022 - ]

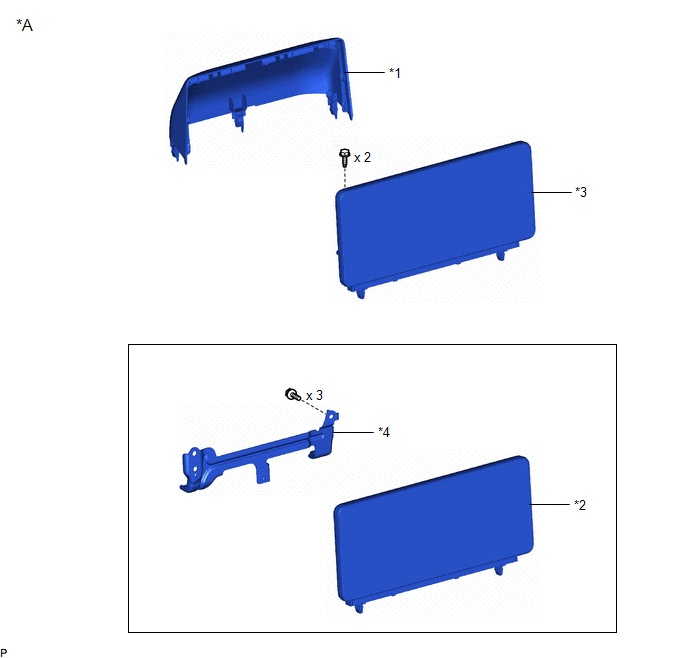

Fig 1: Multi-Display Replacement Components [10/2022 - ] (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*A	for 8 Inch Display	-	-
*1	INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY	*2	MULTI-DISPLAY ASSEMBLY
*3	MULTI-DISPLAY ASSEMBLY WITH BRACKET	*4	NO. 1 MULTI-DISPLAY BRACKET

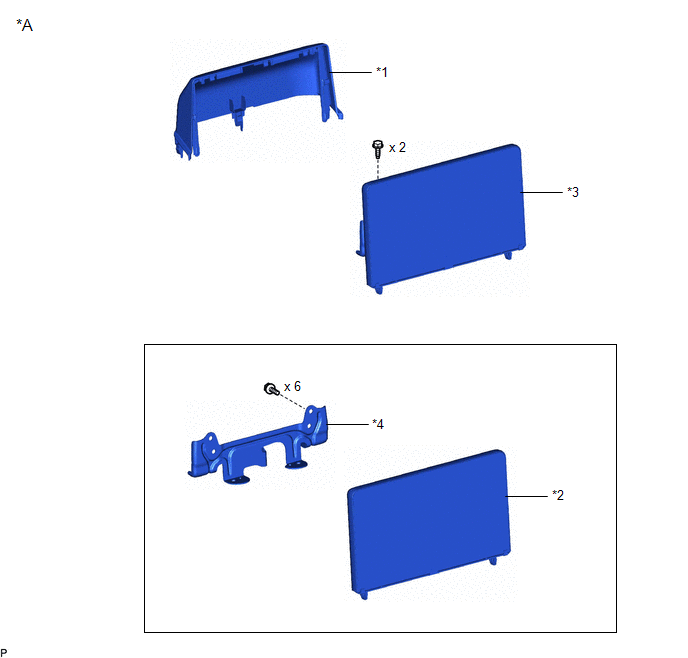

Fig 2: Multi-Display Replacement Components [10/2022 - ] (2 Of 2)

Callout	Description	Callout	Description
*A	for 10.3 Inch Display	-	-
*1	INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY	*2	MULTI-DISPLAY ASSEMBLY
*3	MULTI-DISPLAY ASSEMBLY WITH BRACKET	*4	NO. 1 MULTI-DISPLAY BRACKET
