Components [11/2017 - 10/2022]

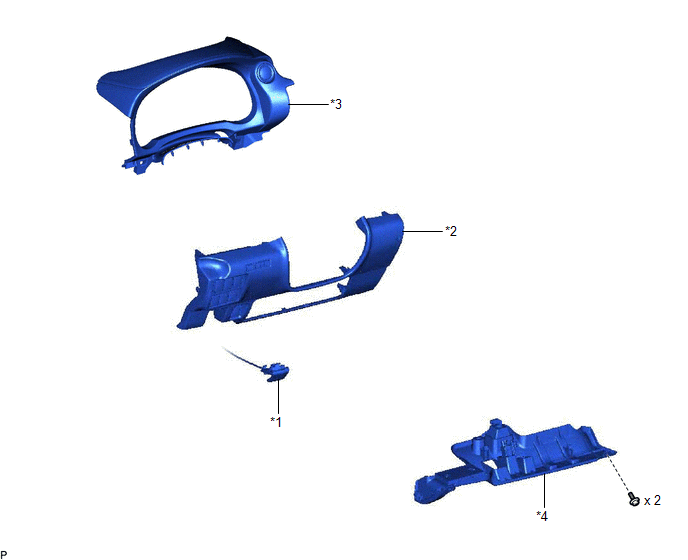

| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | HOOD LOCK CONTROL LEVER SUB-ASSEMBLY | *2 | LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY |
| *3 | METER HOOD SUB-ASSEMBLY | *4 | NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY |

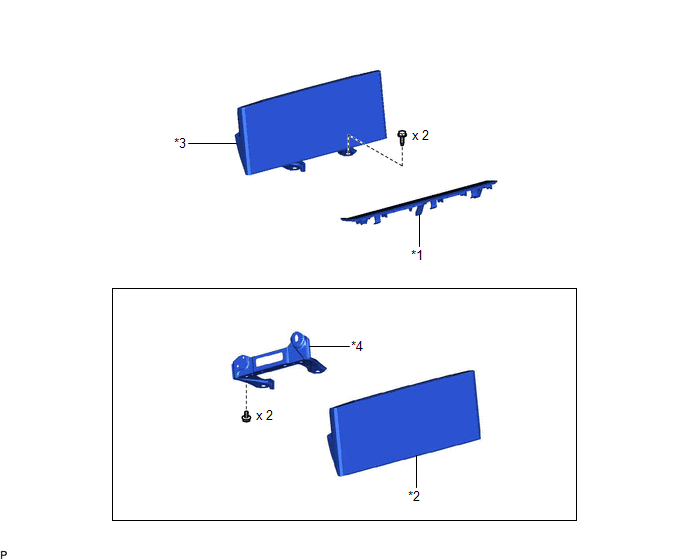

| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY | *2 | MULTI-DISPLAY ASSEMBLY |
| *3 | MULTI-DISPLAY ASSEMBLY WITH BRACKET | *4 | NO. 1 MULTI-DISPLAY BRACKET |

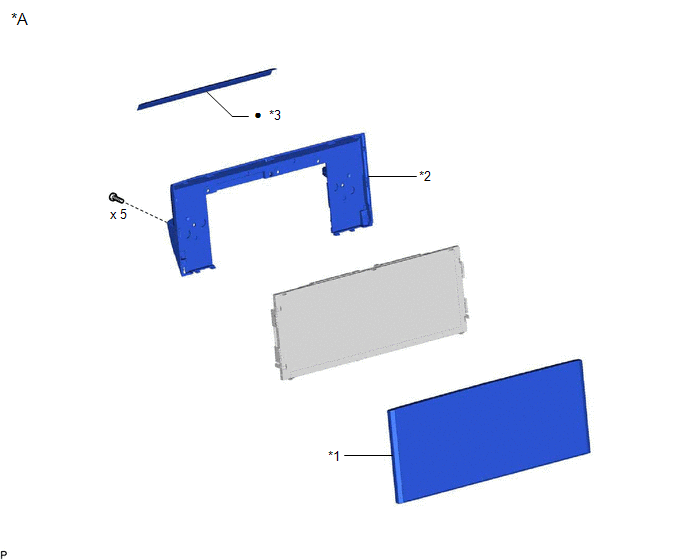

| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | for 10.3 Inch Display | - | - |
| *1 | FRONT ESCUTCHEON | *2 | REAR ESCUTCHEON |
| *3 | INSULATOR | - | - |
| • | Non-reusable part | - | - |
