Components [09/2014 - 11/2017]

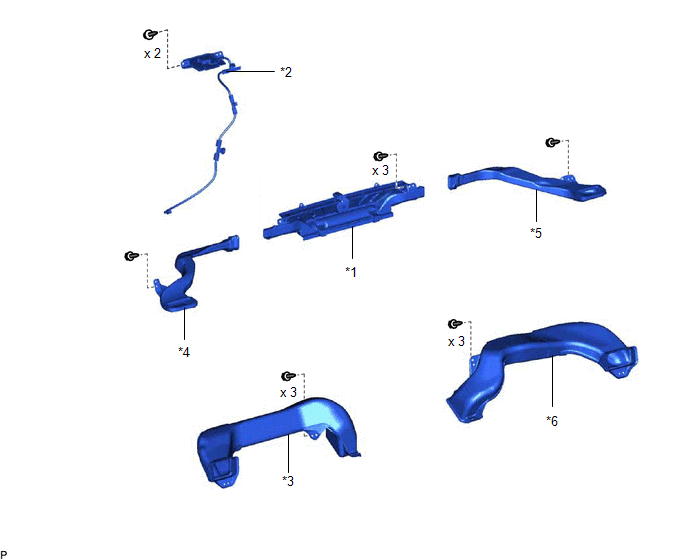

Fig 1: Navigation Antenna Replacement Components [09/2014 - 11/2017]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout
Description
Callout
Description
*1
DEFROSTER NOZZLE ASSEMBLY
*2
NAVIGATION ANTENNA ASSEMBLY
*3
NO. 1 HEATER TO REGISTER DUCT
*4
NO. 1 SIDE DEFROSTER NOZZLE DUCT
*5
NO. 2 SIDE DEFROSTER NOZZLE DUCT
*6
NO. 3 HEATER TO REGISTER DUCT
