Components [11/2017 - 10/2018]

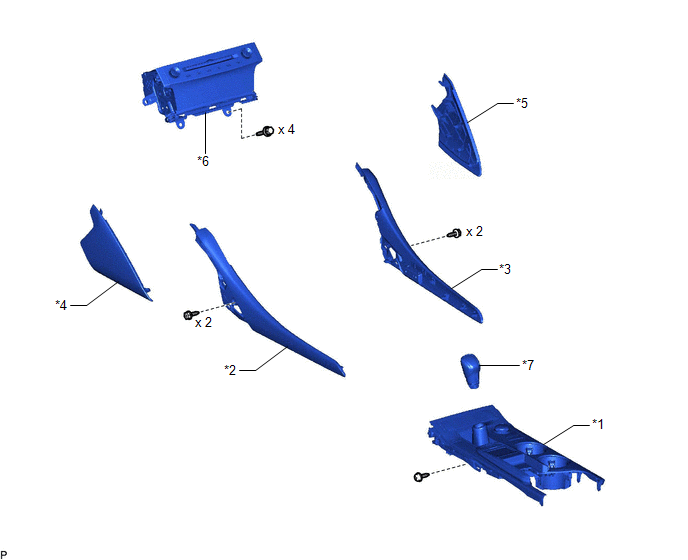

| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | CONSOLE PANEL SUB-ASSEMBLY | *2 | FRONT PANEL GARNISH LH |
| *3 | FRONT PANEL GARNISH RH | *4 | INSTRUMENT PANEL FINISH PANEL END LH |
| *5 | INSTRUMENT PANEL FINISH PANEL END RH | *6 | RADIO RECEIVER ASSEMBLY WITH BRACKET |
| *7 | SHIFT LEVER KNOB SUB-ASSEMBLY | - | - |

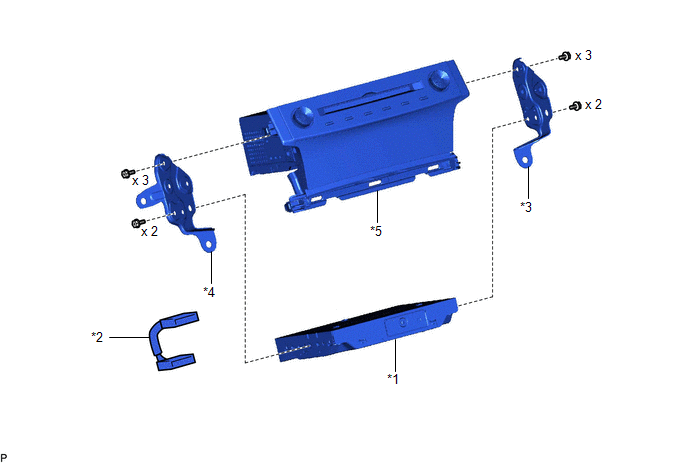

| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | NAVIGATION ECU | *2 | NO. 1 NAVIGATION WIRE |
| *3 | NO. 1 RADIO BRACKET | *4 | NO. 2 RADIO BRACKET |
| *5 | RADIO RECEIVER ASSEMBLY | - | - |
