DTC B2274: ACC Monitor Malfunction [09/2014 - ]: Procedure

  1. CHECK HARNESS AND CONNECTOR (POWER SOURCE)

    See step  1

    Result

    Proceed to
    OK
    NG

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR IN CIRCUIT CONNECTED TO POWER SOURCE

    Result:

    OK

    See step  2

  2. CHECK HARNESS AND CONNECTOR (GROUND)

    See step  2

    Result

    Proceed to
    OK
    NG

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:

    OK

    See step  3

  3. CHECK HARNESS AND CONNECTOR (CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) - INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY)
    1. Disconnect the O6 certification ECU (smart key ECU assembly) connector.
    2. Disconnect the 4B instrument panel junction block assembly connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      O6-9 (ACCD) - 4B-19 Always Below 1 Ω
      4B-7 - Body ground Always Below 1 Ω
      O6-9 (ACCD) or 4B-19 - Body ground Always 10 kΩ or higher

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:

    OK

    See step  4

  4. CHECK INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY (ACC RELAY)
    1. Remove the instrument panel junction block assembly.

      Refer to REMOVAL [09/2014 - ]

    2. Measure the resistance according to the value(s) in the table below.

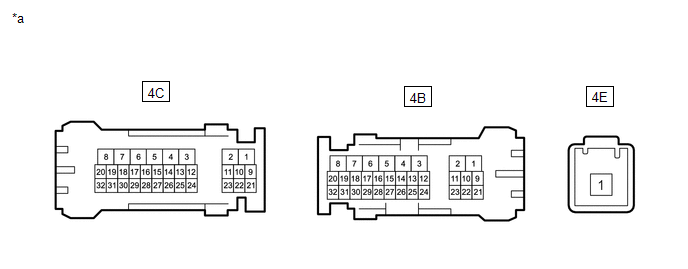

      GTY469716Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Component without harness connected
      (Instrument Panel Junction Block Assembly)
      - -

      Standard Resistance

      Tester Connection Condition Specified Condition
      4B-19 - 4B-7 20°C (68°F) 130.92 to 190.74 Ω
      4E-1 - 4C-20 Battery voltage not applied between terminals 4B-19 and 4B-7 10 kΩ or higher
      Battery voltage applied between terminals 4B-19 and 4B-7 Below 1 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPLACE INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY. Refer to  REMOVAL [09/2014 - ]

    Result:

    OK

    See step  5

  5. CHECK SMART KEY ECU ASSEMBLY
    1. Reconnect the O6 certification ECU (smart key ECU assembly) connector.

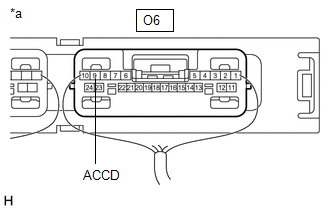

      GTY498542Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Component with harness connected
      (Certification ECU (Smart Key ECU Assembly))
    2. Install the instrument panel junction block assembly.

      Refer to INSTALLATION [09/2014 - ]

    3. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      Tester Connection Condition Specified Condition
      O6-9 (ACCD) - Body ground Engine switch off → Engine switch on (ACC) 1 V or less → 8.5 V or higher

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    END (TEMPORARY CONNECTION FAILURE IS SUSPECTED). Refer to  HOW TO PROCEED WITH TROUBLESHOOTING [09/2014 - 10/2015]  , or refer to  HOW TO PROCEED WITH TROUBLESHOOTING [10/2015 - 11/2017]  , or refer to  HOW TO PROCEED WITH TROUBLESHOOTING [11/2017 - 10/2018]  , or refer to  HOW TO PROCEED WITH TROUBLESHOOTING [10/2018 - 11/2019]  , or refer to  HOW TO PROCEED WITH TROUBLESHOOTING [11/2019 - 09/2020]  , or refer to  HOW TO PROCEED WITH TROUBLESHOOTING [09/2020 - 10/2022]  , or refer to  HOW TO PROCEED WITH TROUBLESHOOTING [10/2022 - ]

    Result:

    NG

    REPLACE SMART KEY ECU ASSEMBLY. Refer to  REMOVAL [09/2014 - ]
