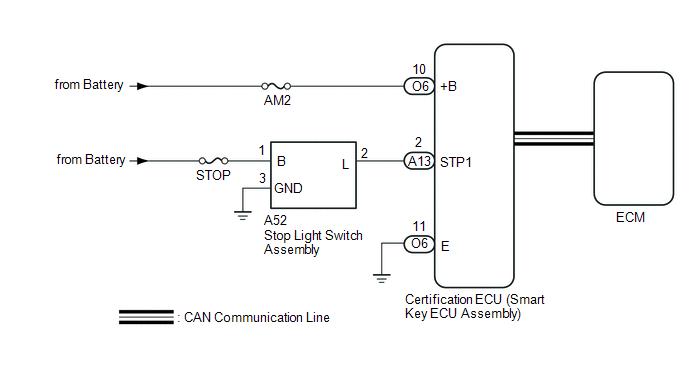

DTC B2284: Brake Signal Malfunction [10/2015 - 11/2017]: Wiring Diagram

GTY508766

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
