Components [09/2014 - 11/2017]

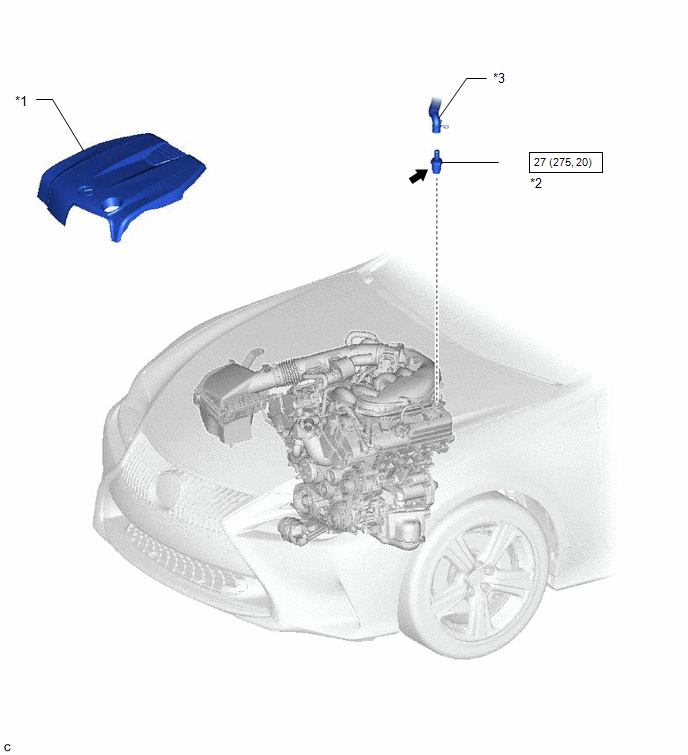

Fig 1: PCV Valve Replacement Components With Torque Specifications [09/2014 - 11/2017]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout
Description
Callout
Description
*1
V-BANK COVER SUB-ASSEMBLY
*2
PCV VALVE (VENTILATION VALVE SUB-ASSEMBLY)
*3
VENTILATION HOSE ASSEMBLY
-
-
N.m (kgf/cm, ft.lbf): Specified torque
Adhesive 1324
*
Precoated part
-
-
