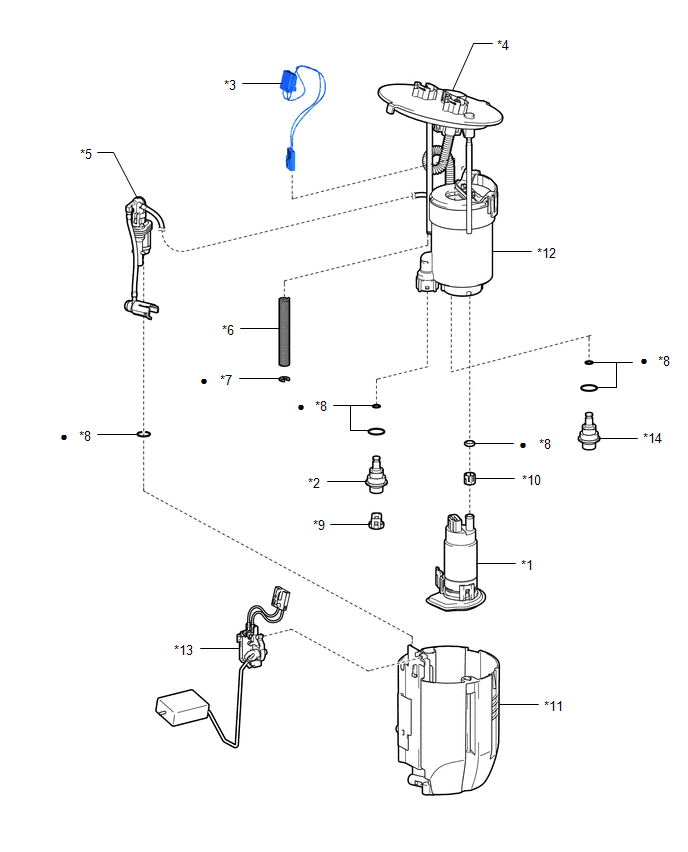

Components [09/2014 - 11/2017]
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | FUEL PUMP WITH FILTER ASSEMBLY | *2 | FUEL PRESSURE REGULATOR ASSEMBLY |
| *3 | FUEL PUMP HARNESS | *4 | FUEL SUCTION PLATE SUB-ASSEMBLY |
| *5 | JET PUMP | *6 | SPRING |
| *7 | E-RING | *8 | O-RING |
| *9 | NO. 2 FUEL SUCTION SUPPORT | *10 | FUEL PUMP SPACER |
| *11 | NO. 1 FUEL SUB-TANK | *12 | FUEL FILTER |
| *13 | FUEL SENDER GAUGE ASSEMBLY | *14 | FUEL MAIN VALVE ASSEMBLY |
| • | Non-reusable part | - | - |
