Components [09/2014 - 11/2017]

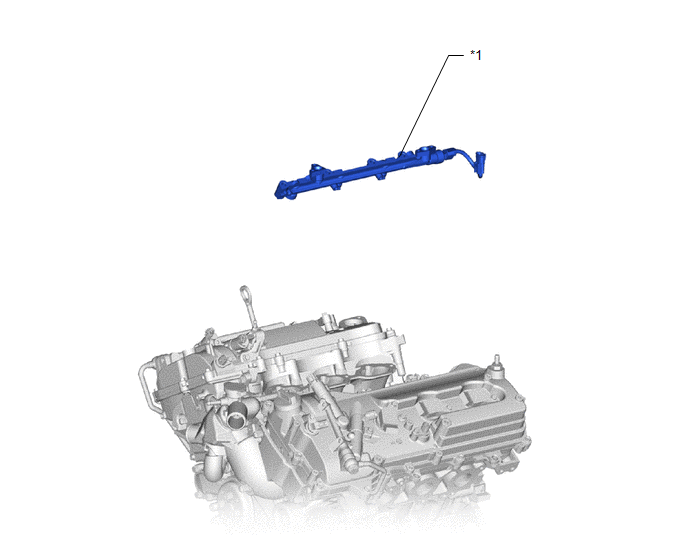

Fig 1: Fuel Pressure Sensor Replacement Components [09/2014 - 11/2017]
GTY504934Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 FUEL DELIVERY PIPE SUB-ASSEMBLY (FUEL PRESSURE SENSOR) - -
