Components [09/2014 - 11/2017]

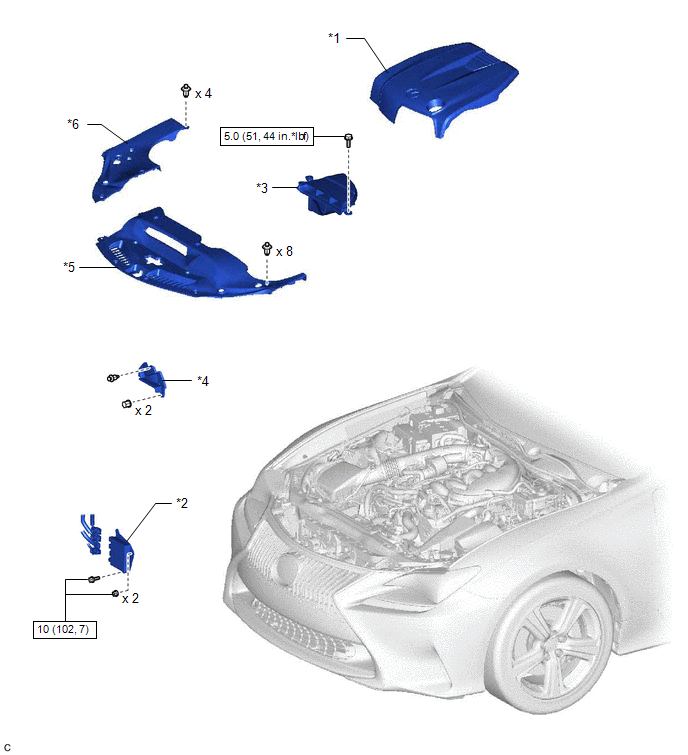

Fig 1: Injector Driver Replacement Components With Torque Specifications [09/2014 - 11/2017]
GTY517184Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 V-BANK COVER SUB-ASSEMBLY *2 INJECTOR DRIVER
*3 INLET NO. 1 AIR CLEANER *4 NO. 1 ENGINE COVER
*5 COOL AIR INTAKE DUCT SEAL *6 ENGINE ROOM SIDE COVER
N.m (kgf/cm, ft.lbf): Specified torque - -
