Engine Lubrication System (2GR-FSE) - Service Information
>>
Oil Level Sensor
>>
Components [09/2014 - 11/2017]
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Components [09/2014 - 11/2017]

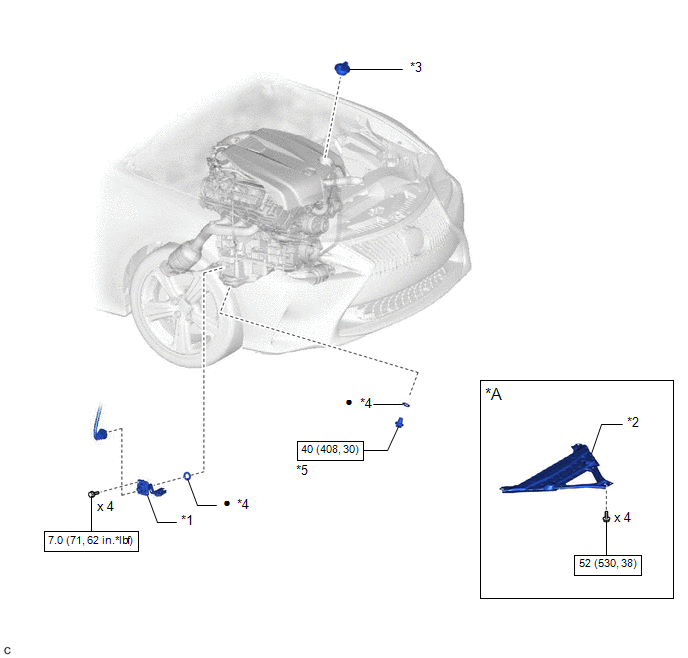

Fig 1: Oil Level Sensor Replacement Components With Torque Specifications [09/2014 - 11/2017]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout
Description
Callout
Description
*A
for 2WD
-
-
*1
ENGINE OIL LEVEL SENSOR
*2
FRONT SUSPENSION MEMBER BRACE
*3
OIL FILLER CAP SUB-ASSEMBLY
*4
GASKET
*5
OIL PAN DRAIN PLUG
-
-
N.m (kgf/cm, ft.lbf): Specified torque
•
Non-reusable part
