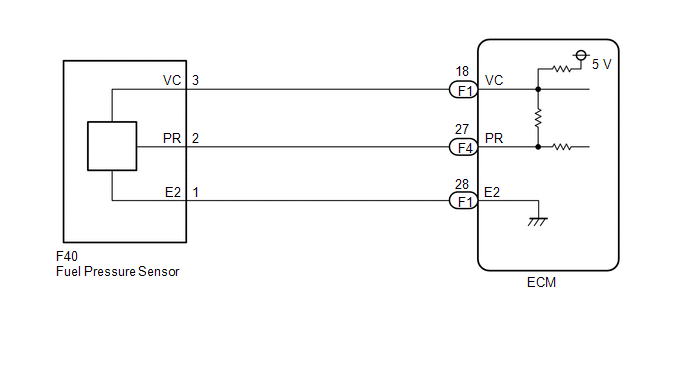

DTC P0190: Fuel Rail Pressure Sensor Circuit; DTC P0192: Fuel Rail Pressure Sensor Circuit Low Input; DTC P0193: Fuel Rail Pressure Sensor Circuit High Input [09/2014 - 11/2017]: Wiring Diagram

GTY510953Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
