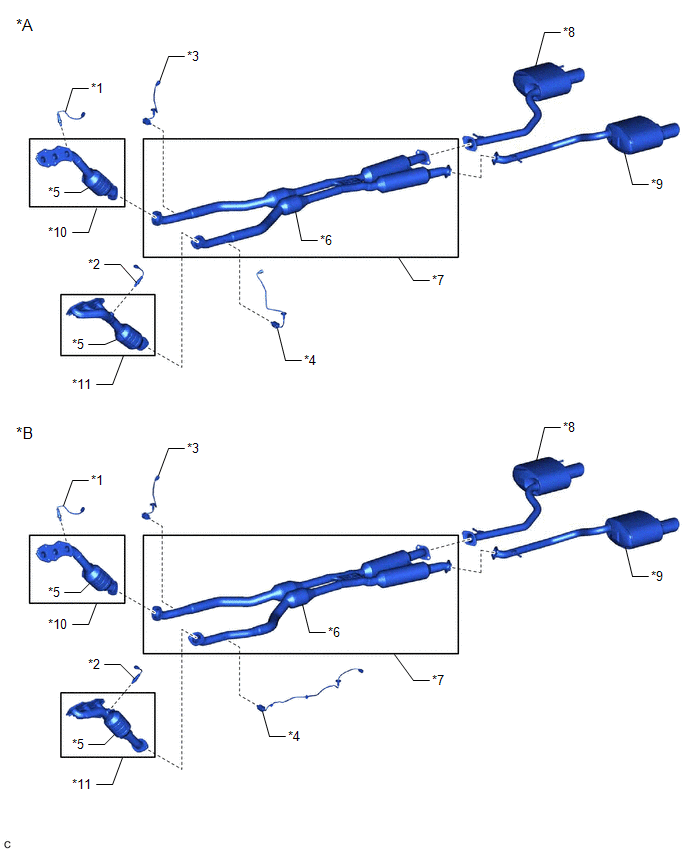

Catalyst Location
| *A | for 2WD Models | *B | for AWD Models |
| *1 | Air Fuel Ratio Sensor (Bank 1 Sensor 1) | *2 | Air Fuel Ratio Sensor (Bank 2 Sensor 1) |
| *3 | Heated Oxygen Sensor (Bank 1 Sensor 2) | *4 | Heated Oxygen Sensor (Bank 2 Sensor 2) |
| *5 | TWC: Front Catalyst | *6 | TWC: Rear Catalyst |
| *7 | Front Exhaust Pipe Assembly | *8 | Tail Exhaust Pipe Assembly |
| *9 | Tail Exhaust Pipe LH | *10 | Exhaust Manifold Sub-assembly RH |
| *11 | Exhaust Manifold Sub-assembly LH | - | - |
NOTE:
- If DTC P0420 is output, replace the exhaust manifold sub-assembly RH (*10) and the front exhaust pipe assembly (*7) together when catalyst replacement is necessary (Excluding air fuel ratio sensor*1 and heated oxygen sensor*3).
- If DTC P0430 is output, replace the exhaust manifold sub-assembly LH (*11) and the front exhaust pipe assembly (*7) together when catalyst replacement is necessary (Excluding air fuel ratio sensor*2 and heated oxygen sensor*4).
