Installation [09/2014 - 11/2017]: Procedure
- INSTALL ECU BRACKET
- Install the ECU bracket with the 3 bolts.
Bolt A
Torque: 8.3 N.m (85 kgf/cm, 73 in.lbf)
Bolt B
Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)
NOTE:As the tightening torque differs depending on the type of bolt, confirm the tightening torque before installing each bolt.

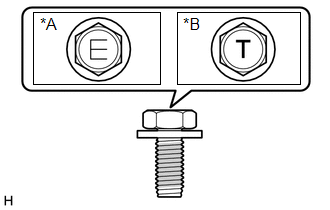

*A Bolt A *B Bolt B - Engage the wire harness clamp.
- Install the ECU bracket with the 3 bolts.
- INSTALL REAR STEERING CONTROL ECU
- Install the rear steering control ECU with the 3 bolts.
Bolt A
Torque: 8.3 N.m (85 kgf/cm, 73 in.lbf)
Bolt B
Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)
NOTE:As the tightening torque differs depending on the type of bolt, confirm the tightening torque before installing each bolt.
*A Bolt A *B Bolt B - Connect the 3 connectors to the rear steering control ECU.
HINT:

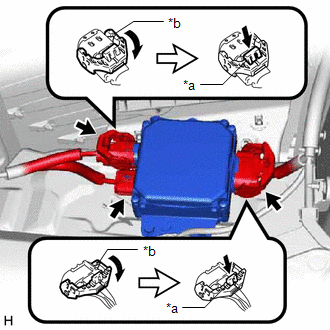

When connecting the connector with lock lever, return the lock lever to its original position and securely push in the lock of the lock lever as shown in the illustration.
*a Lock of the Lock Lever *b Lock Lever
- Install the rear steering control ECU with the 3 bolts.
- INSTALL LUGGAGE COMPARTMENT TRIM COVER LH
Refer to PROCEDURE - Step 4
- INSTALL FRONT UPPER LUGGAGE COMPARTMENT TRIM COVER
Refer to PROCEDURE - Step 9
- INSTALL NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY
Refer to PROCEDURE - Step 2
- INSTALL FRONT LUGGAGE COMPARTMENT TRIM COVER
Refer to PROCEDURE - Step 14
- INSTALL REAR LUGGAGE COMPARTMENT TRIM COVER
Refer to PROCEDURE - Step 15
- INSTALL SPARE WHEEL COVER TRAY
Refer to PROCEDURE - Step 16
- INSTALL NO. 1 LUGGAGE COMPARTMENT TRIM COVER
Refer to PROCEDURE - Step 17
- CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
Refer to PROCEDURE - Step 4
- PERFORM DYNAMIC REAR STEERING SYSTEM CALIBRATION
Refer to CALIBRATION [09/2014 - 09/2020]
