System Diagram [09/2014 - 10/2022]

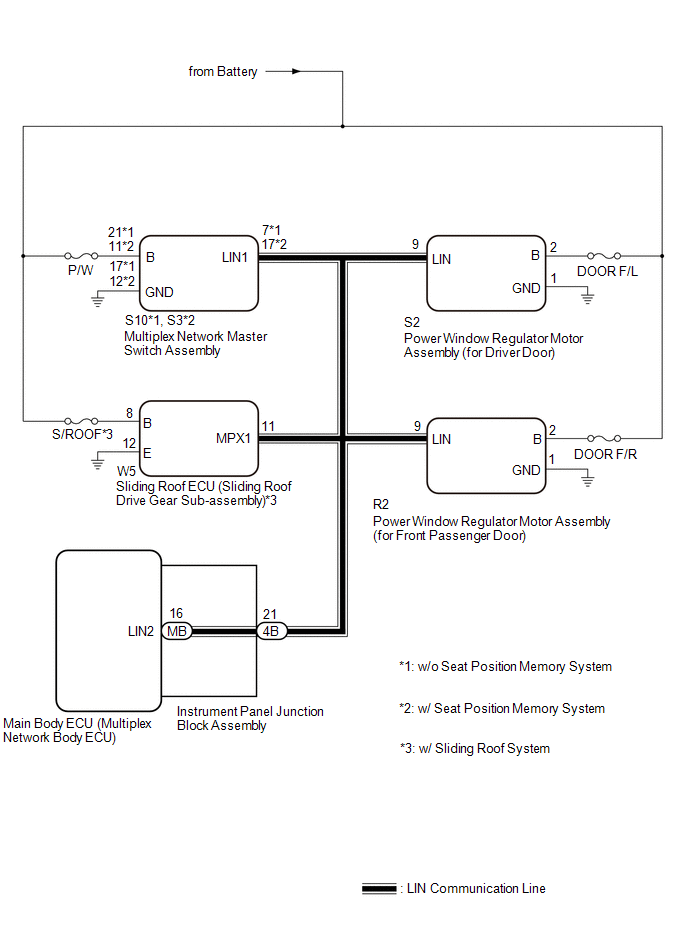

  1. DOOR BUS LINES
    GTY508153Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

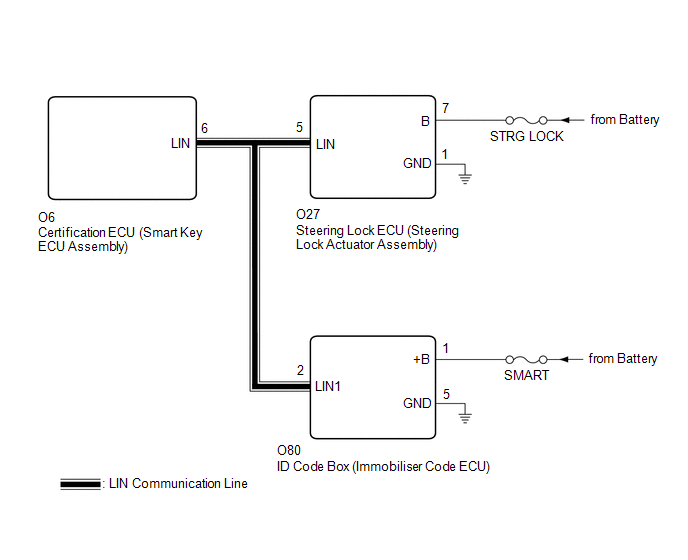

  2. CERTIFICATION BUS LINES
    GTY511944Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
