Operation Check [09/2014 - 11/2017]
- INPUT SIGNAL CHECK
*a ON/OFF *b -/SET *c +/RES *d CANCEL *e MODE - Connect the Techstream to the DLC3.
- Check the cruise control switch using the Data List function of the Techstream (ON/OFF, -/SET, +/RES, CANCEL and MODE).
- INSPECT MODE SWITCH
*a ON/OFF *b MODE - Turn the engine switch on (IG).
- Turn the cruise control system on using the cruise control switch (ON/OFF button). Then push the cruise control switch to MODE and hold in that position for 1 second or more to change to the constant speed control mode.
- Check that the cruise control indicator (vehicle-to-vehicle distance control mode) goes off and the cruise control indicator (constant speed control mode) illuminates.
*a Cruise Control Indicator
(Vehicle-to-vehicle distance control mode)*b Cruise Control Indicator
(Constant speed control mode)NOTE:Do not push any other switches before pushing the cruise control switch to MODE. If another switch is pushed, turn the cruise control system off and repeat the procedure.
HINT:
If a malfunction is detected, turn the engine switch off and repeat the procedure.
- INSPECT STEERING PAD SWITCH ASSEMBLY
- Turn the engine switch on (IG).
- Turn the cruise control system on using the cruise control switch (ON/OFF button).
- Press the steering pad switch assembly (distance control switch).

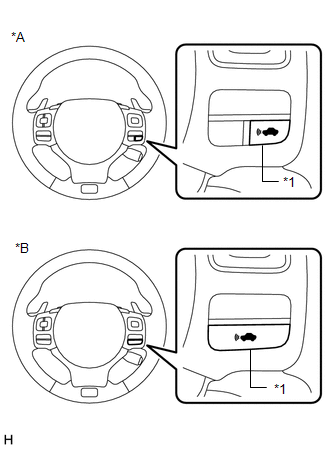

*A w/ Lane Departure Alert System *B w/o Lane Departure Alert System *1 Distance Control Switch - Check that the indication of the vehicle-to-vehicle distance, which is shown on the multi-information display in the combination meter assembly changes from long to middle to short in that order.

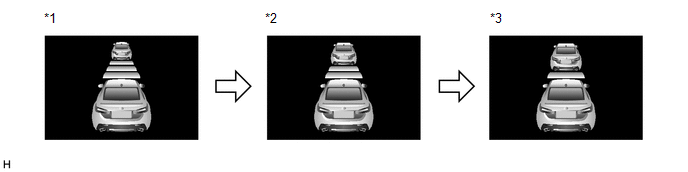

*1 Long *2 Middle *3 Short - - HINT:
Long is automatically selected each time the engine is started.
