Headlight Beam Level Control Actuator Circuit [03/2019 - ]: Wiring Diagram

WARNING: This page is about a different car, the 2024 Lexus RC F, 2023 Lexus RC F, 2022 Lexus RC F, 2021 Lexus RC F, and 2020 Lexus RC F. However, it is still accessible from the selected car via links, so may be relevant.

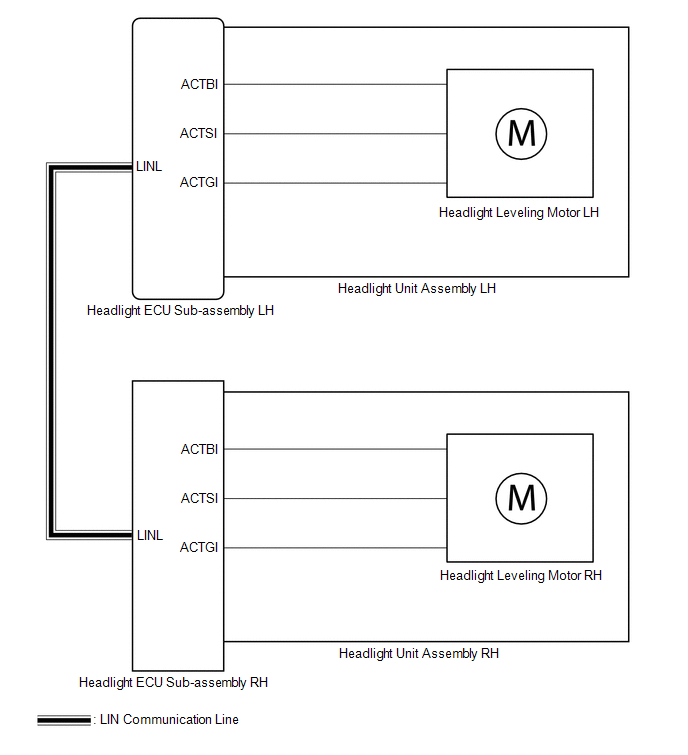

GTY959662Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
