Components [08/2019 - ]

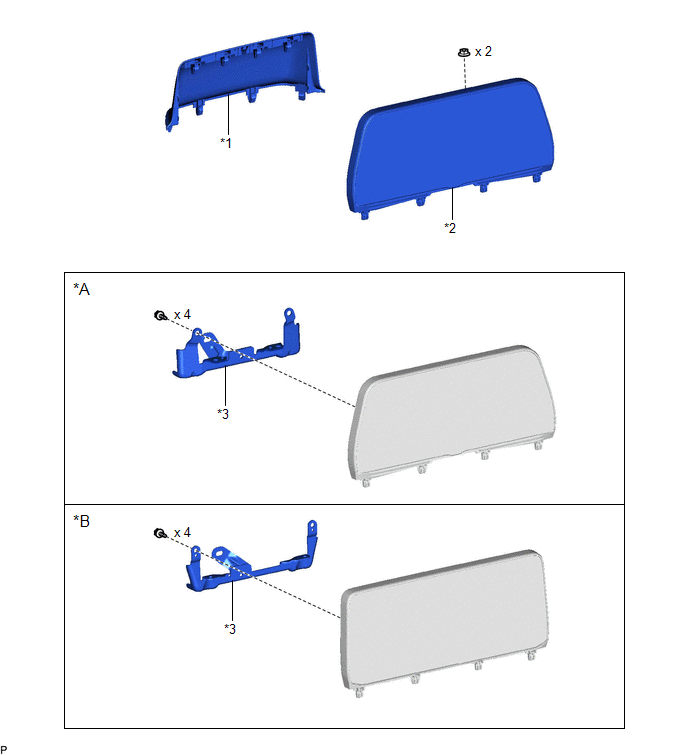

Fig 1: Multi-Display Replacement Components [08/2019 - ]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*A
for 8 Inch Display
*B
for 12.3 Inch Display
*1
INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY
*2
MULTI-DISPLAY ASSEMBLY
*3
MULTI-DISPLAY CONTROLLER BRACKET A
-
-
