Installation [09/2015 - 08/2019]: Procedure

  1. INSTALL MULTI-DISPLAY ASSEMBLY (for 8 Inch Display)
    1. Connect each connector.
    2. Engage the clamp.
    3. Engage the 2 clips as shown in the illustration.

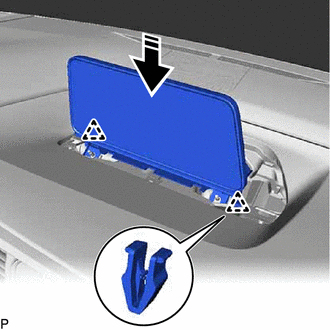

      GTY655536Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
    4. Install the multi-display assembly with the bolt and 2 nuts.
  2. INSTALL ACCESSORY METER ASSEMBLY (for 12.3 Inch Display)
    1. Connect each connector.
    2. Engage the clamp.
    3. Engage the 2 clips as shown in the illustration.

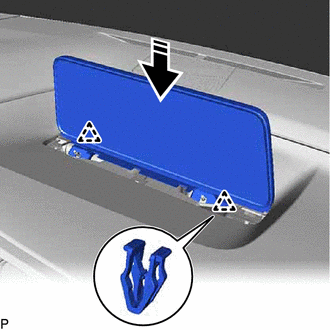

      GTY664207Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
    4. Install the accessory meter assembly with the bolt and 2 nuts.
  3. INSTALL INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY (for 8 Inch Display)

    Refer to PROCEDURE - Step 22 [09/2015 - 12/2017] , or refer to PROCEDURE - Step 22 [12/2017 - 08/2019]

  4. INSTALL CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY (for 8 Inch Display)

    Refer to PROCEDURE - Step 23 [09/2015 - 12/2017] , or refer to PROCEDURE - Step 23 [12/2017 - 08/2019]

  5. INSTALL INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY (for 12.3 Inch Display)

    Refer to PROCEDURE - Step 24 [09/2015 - 12/2017] , or refer to PROCEDURE - Step 24 [12/2017 - 08/2019]

  6. INSTALL CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY (for 12.3 Inch Display)

    Refer to PROCEDURE - Step 25 [09/2015 - 12/2017] , or refer to PROCEDURE - Step 25 [12/2017 - 08/2019]
