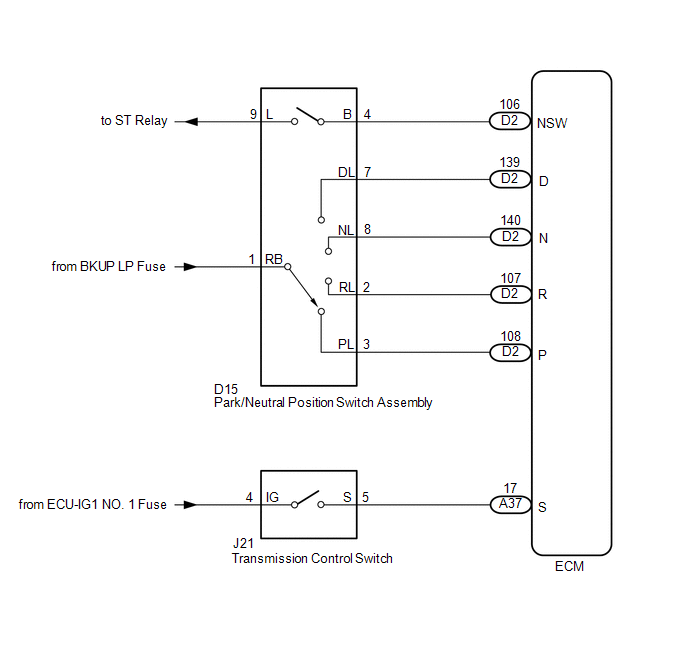

DTC P0705-13: Transmission Range Sensor "A" Circuit Open; DTC P0705-62: Transmission Range Sensor "A" Signal Compare Failure [09/2015 - 08/2019]: Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
