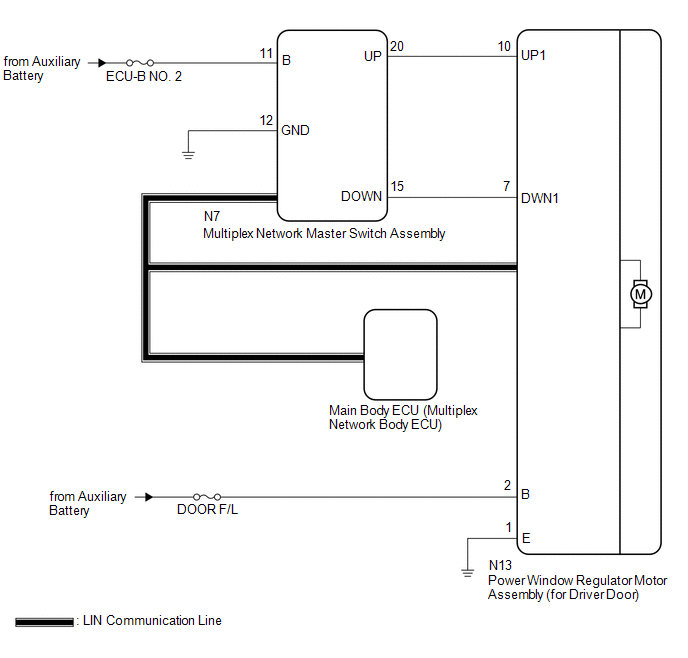

Driver Side Power Window does not Operate with Power Window Master Switch [10/2015 - ]: Wiring Diagram

GTY639144Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
