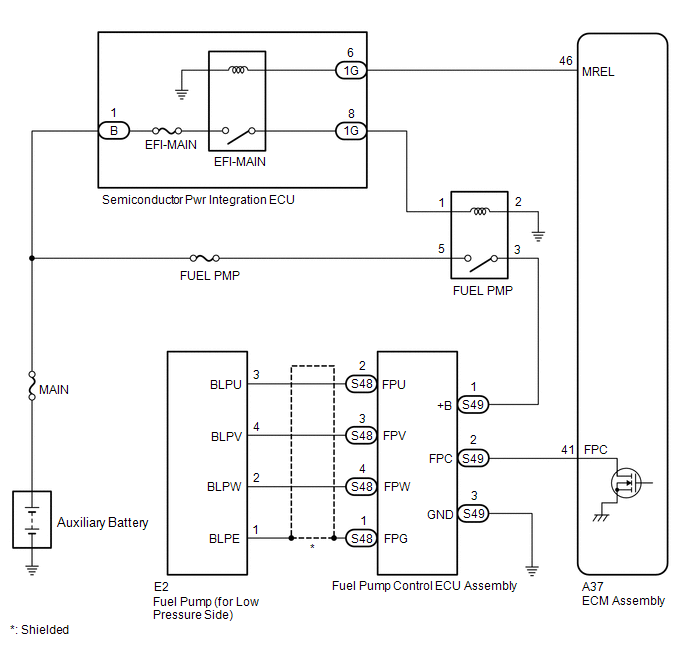

Fuel Pump Control Circuit [10/2015 - 03/2018]: Wiring Diagram

GTY662786

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
