Power Steering System - Diagnostics - Introduction
>>
Power Steering System
>>

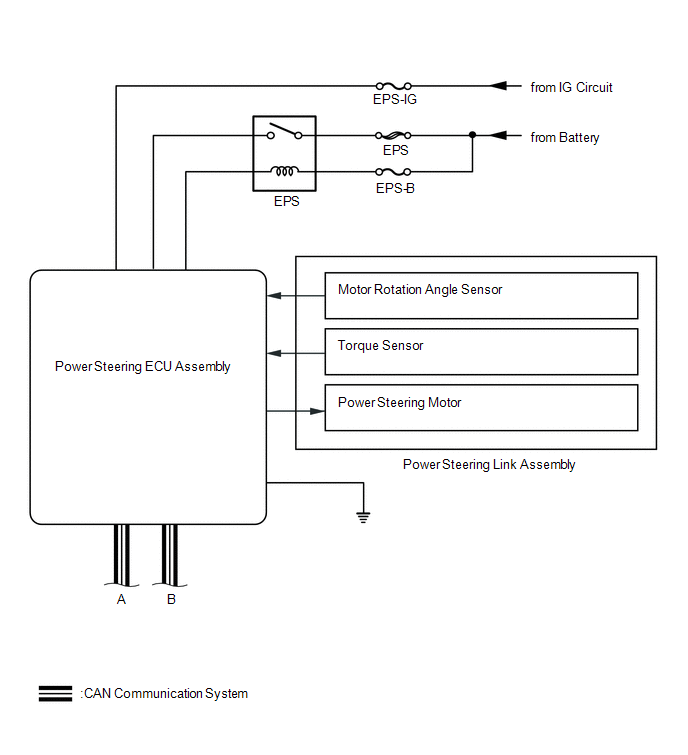

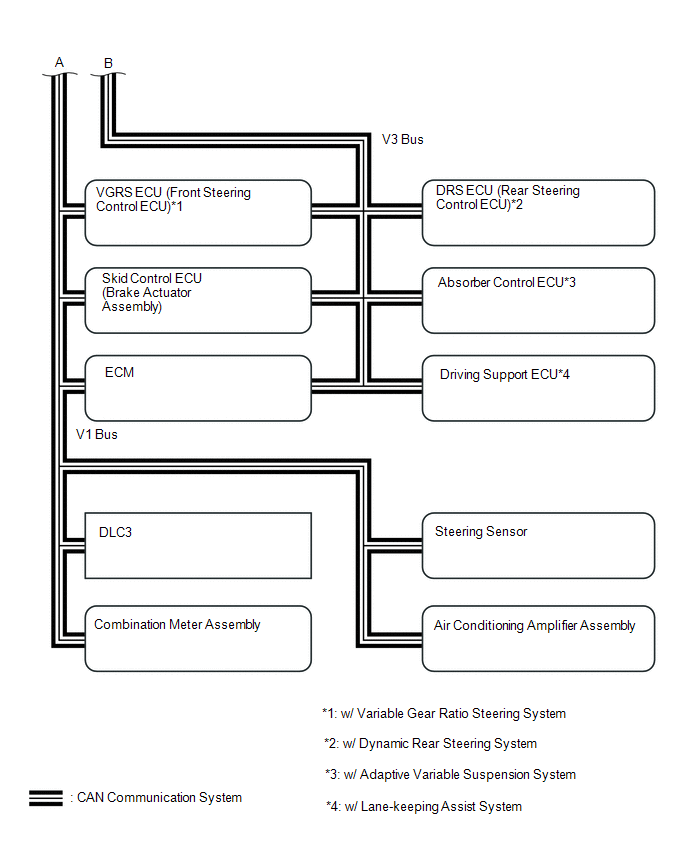

System Diagram [09/2014 - ]
>>
System Diagram [09/2014 - ]
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
System Diagram [09/2014 - ]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
