Components [10/2015 - ]: Illustration

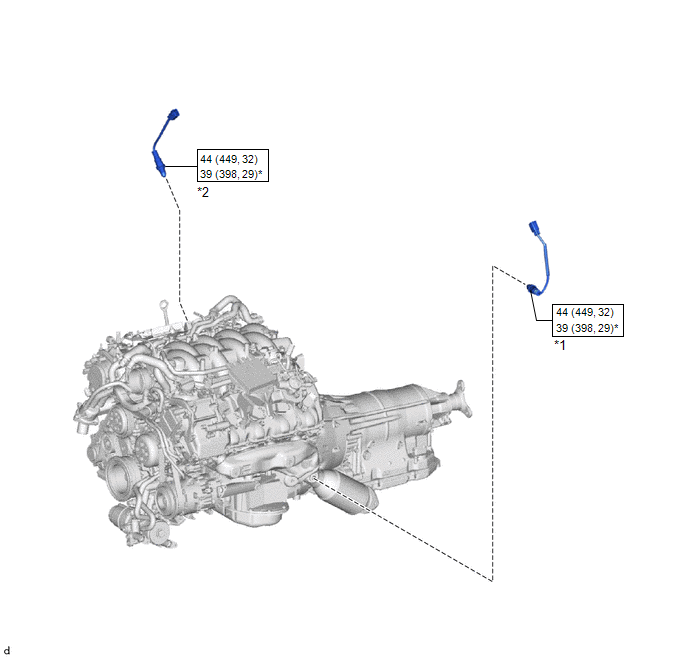

Fig 1: Air Fuel Ratio Sensor Replacement Components With Torque Specifications
GTY627638Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 AIR FUEL RATIO SENSOR (for Bank 1) *2 AIR FUEL RATIO SENSOR (for Bank 2)
N*m (kgf*cm, ft.*lbf): Specified torque * For use with SST
