DTC P2121: Throttle / Pedal Position Sensor / Switch "D" Circuit Range / Performance [08/2015 - ]: Procedure

1. Connect the Techstream to the DLC3.
2. Turn the engine switch on (IG).
3. Turn the Techstream on.
4. Enter the following menus: Powertrain / Engine and ECT / Trouble Codes.
5. Read the DTCs.
   RESULT



   Result	Proceed to
   P2121 is output	A
   P2121 and other DTCs are output	B

   HINT:

   If any DTCs other than P2121 are output, troubleshoot those DTCs first.

Result:

B

GO TO DTC CHART

(Refer to DIAGNOSTIC TROUBLE CODE CHART [08/2015 - 08/2016] , or refer to DIAGNOSTIC TROUBLE CODE CHART [08/2016 - 08/2017] , or refer to DIAGNOSTIC TROUBLE CODE CHART [08/2017 - 08/2019] , or refer to DIAGNOSTIC TROUBLE CODE CHART [08/2019 - 08/2020] , or refer to DIAGNOSTIC TROUBLE CODE CHART [08/2020 - 08/2021] , or refer to DIAGNOSTIC TROUBLE CODE CHART [08/2021 - 08/2022] , or refer to DIAGNOSTIC TROUBLE CODE CHART [08/2022 - ] )

Result:

A

See step  2

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Connect the Techstream to the DLC3.
2. Turn the engine switch on (IG).
3. Turn the Techstream on.
4. Enter the following menus: Powertrain / Engine and ECT / Data List / Accel Sensor Out No. 1 and Accel Sensor Out No. 2.
5. Read the values displayed on the Techstream.

   Standard Voltage

   Accelerator Pedal Operation	Accel Sensor Out No. 1	Accel Sensor Out No. 2
   Released	0.5 to 1.1 V	1.2 to 2.0 V
   Depressed	2.6 to 4.5 V	3.4 to 4.75 V

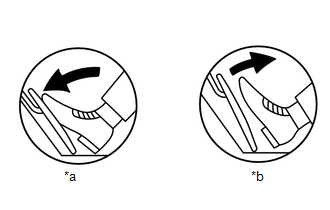

   TEXT IN ILLUSTRATION



   *a	Depressed
   *b	Released

Result:

OK

CHECK FOR INTERMITTENT PROBLEMS

(Refer to CHECK FOR INTERMITTENT PROBLEMS [08/2015 - ] )

Result:

NG

See step  3

1. Replace the accelerator pedal position sensor assembly (Refer to REMOVAL [08/2015 - ] ).

Result:

NEXT

See step  4

1. Connect the Techstream to the DLC3.
2. Turn the engine switch on (IG).
3. Turn the Techstream on.
4. Clear the DTCs (Refer to DTC CHECK / CLEAR [08/2015 - ] ).
5. Drive the vehicle in accordance with the driving pattern described in Confirmation Driving Pattern.
6. Read the DTCs.
   RESULT



   Result	Proceed to
   P2121 is output	A
   No output	B

Result:

A

REPLACE ECM

(Refer to REMOVAL [08/2015 - ] )

Result:

B

END
